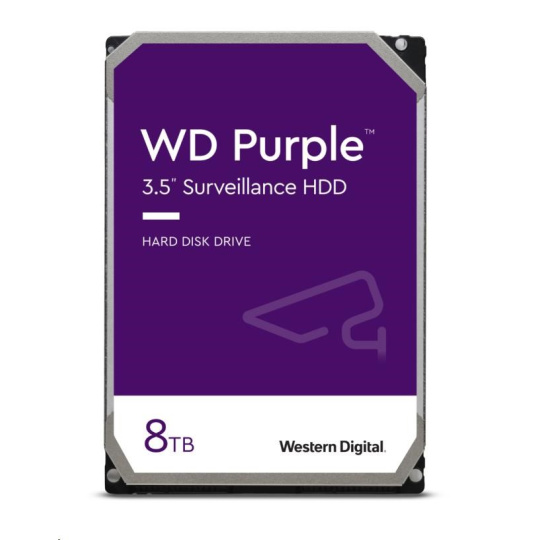

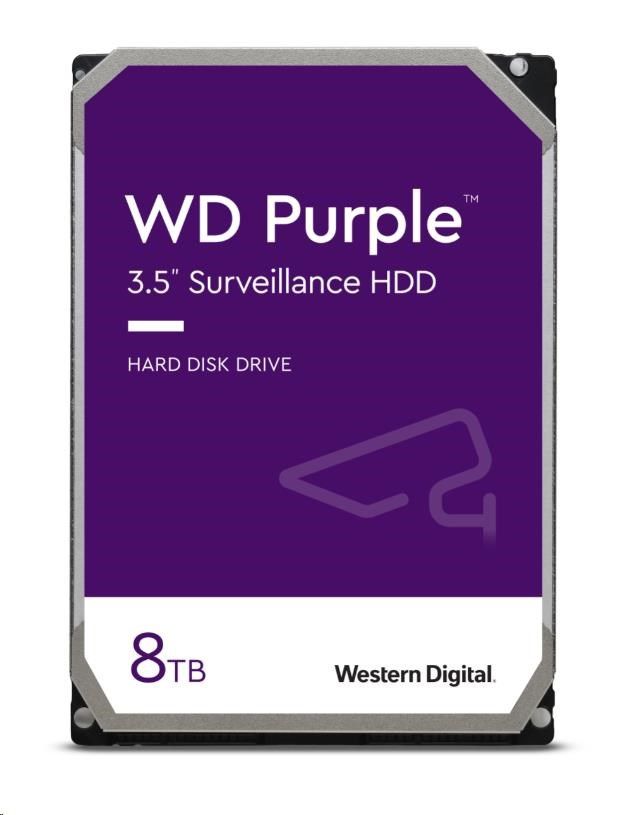

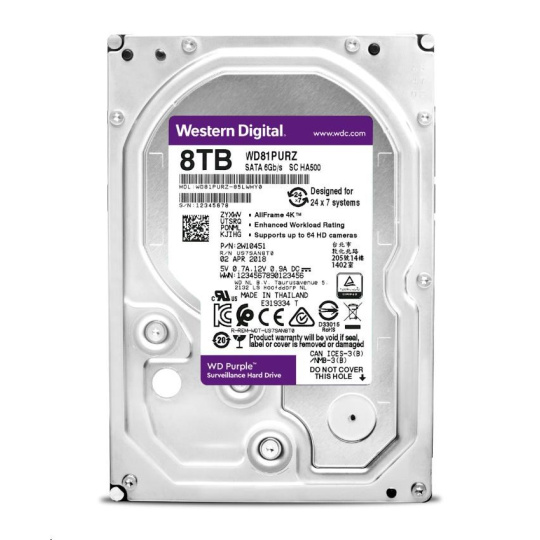

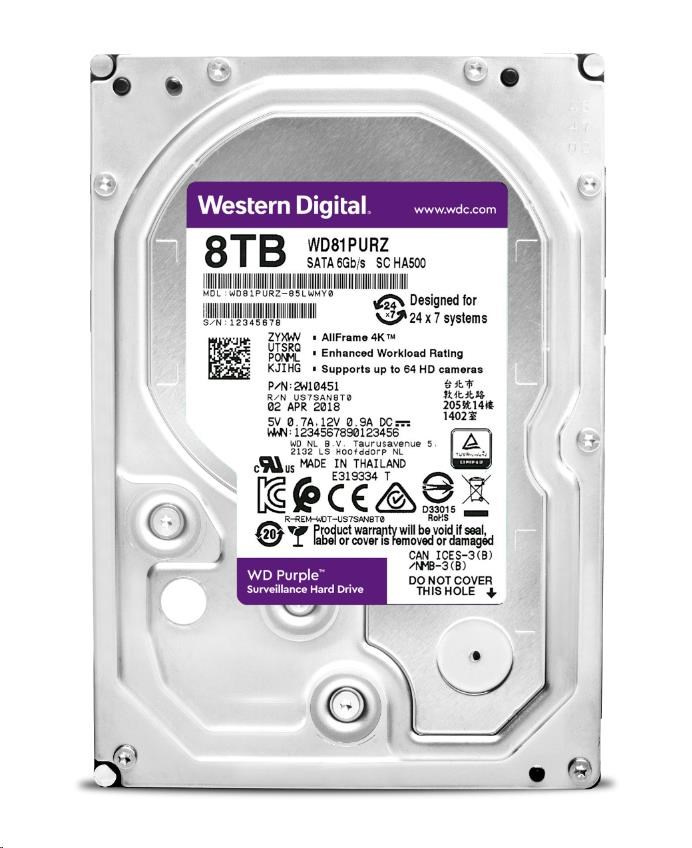

WD PURPLE WD85PURZ 8TB SATA/600 128MB cache, Low Noise, 180MB/s, CMR
Popis a parametry
WD PURPLE WD85PURZ 8TB SATA/600 128MB cache, Low Noise, 180MB/s, CMR
WD Purple - Highlights
- Highlights
- Capacity up to 12TB
- Support for up to 64 cameras per drive
- AllFrame™ technology
- Up to 16 AI channels for Deep Learning analytics on AI-enabled NVRs (10TB & 12TB capacities)
- MTBF of up to 1.5 million hours
- 3-year limited warranty
TECHNICAL SPECIFICATIONS
| MODEL NUMBER | WD82PURZ |
| Formatted capacity | 8TB |
| Form factor | 3.5-inch |
| Advanced Format (AF) | Yes |
| RoHS compliant | Yes |
| PRODUCT FEATURES | |
| Cameras supported | Up to 64 |
| Drive Bays Supported | 16+ |
| Al Streams | 32 |
| Firmware Feature Name | AllFrame Al |
| Tarnish resistant components | Yes |
| PERFORMANCE | |
| Interface transfer rate (max) | Buffer to host: 6 Gb/s Host to/from drive(sustained): 245 MB/s |
| Cache (MB) | 128 |
| Performance Class | 7200 RPM |
| RELIABILITY/DATA INTEGRITY | |
| Load/unload cycles | 300,000 |
| Annualized workload rating | 360TB/yr |
| Non-recoverable read errors per bits read | ‹1 in 10(15) |
| MTBF | 1,500,000 |
| Limited warranty (years) | 3 |
| POWER MANAGEMENT | |
| Average power requirements (W) | Read/Write: 8.6 |
| Idle: 7.4 | |
| Standby and Sleep: 0.4 | |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature (°C) | Operating: 0 to 65 |
| Non-operating: -40 to 70 | |
| Shock (Gs) | Operating (2 ms, read/write): 30 |
| Operating (2 ms, read): 65 | |
| Non-operating (2 ms): 250 | |
| Acoustics (dBA) | Idle: 27 |
| Seek (average): 29 | |
| PHYSICAL DIMENSIONS | |
| Height (in./mm, max) | 1.028/26.1 |
| Length (in./mm, max) | 5.787/147 |
| Width (in./mm, ± .01 in.) | 4/101.6 |
| Weight (lb/kg, ± 10%) | 1.58/0.715 |
.
ParametryPorovnání
Formát
3.5"
Typ disku
HDD
Velikost bufferu (v MB)
128
Rozhraní
interní Serial ATA III
Použití disku
Pro NAS
HDD Kapacita (GB)
8000
Otáčky HDD
7200
