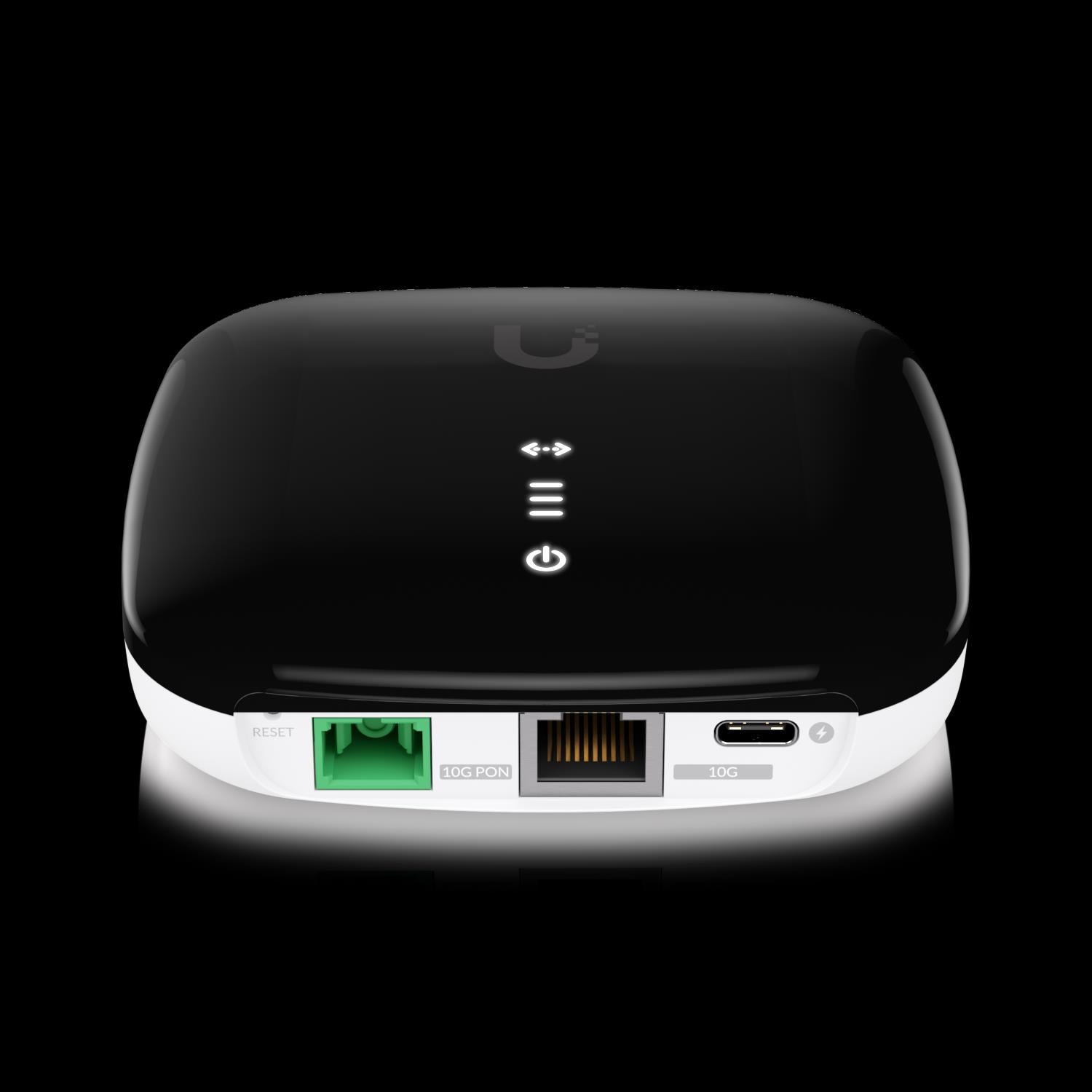

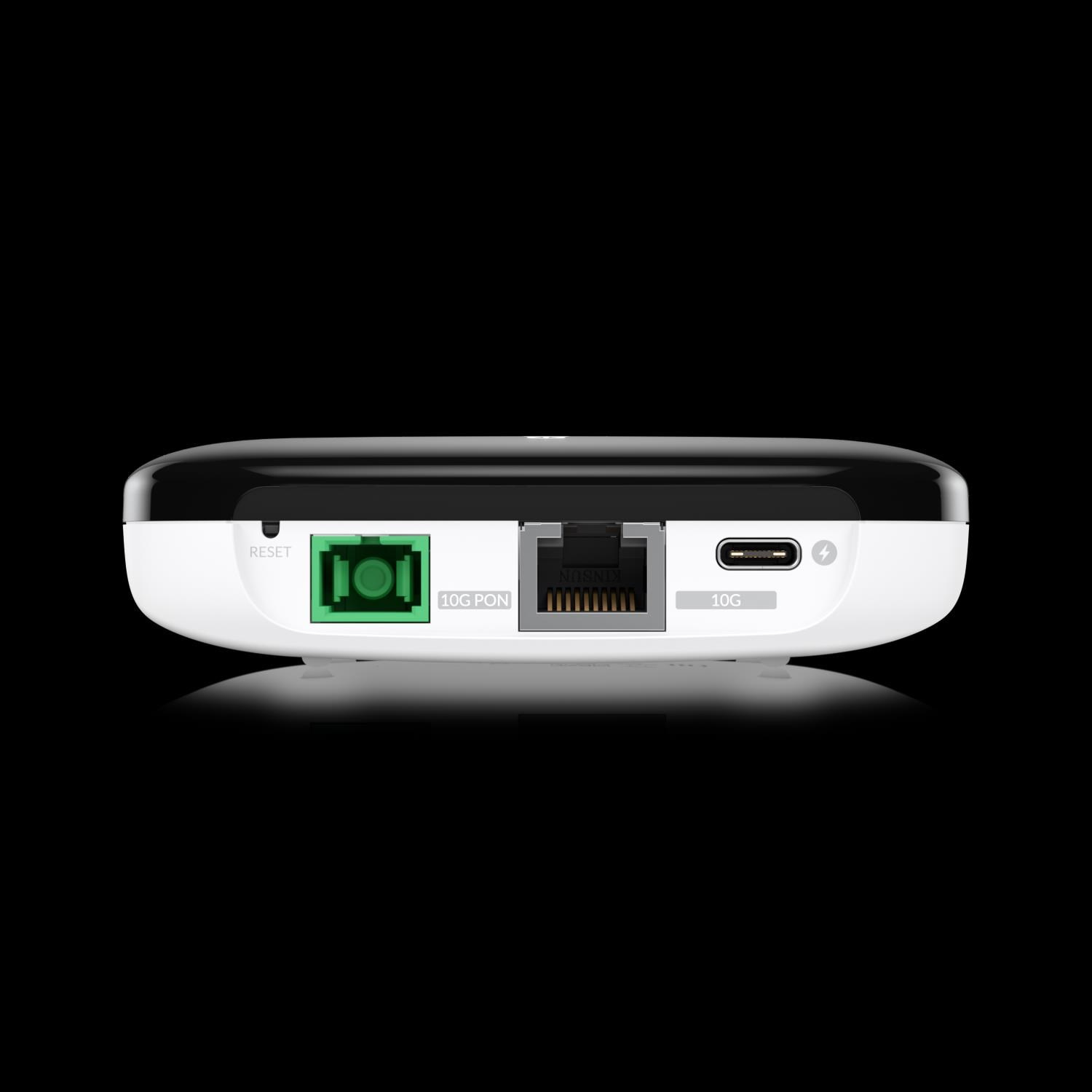

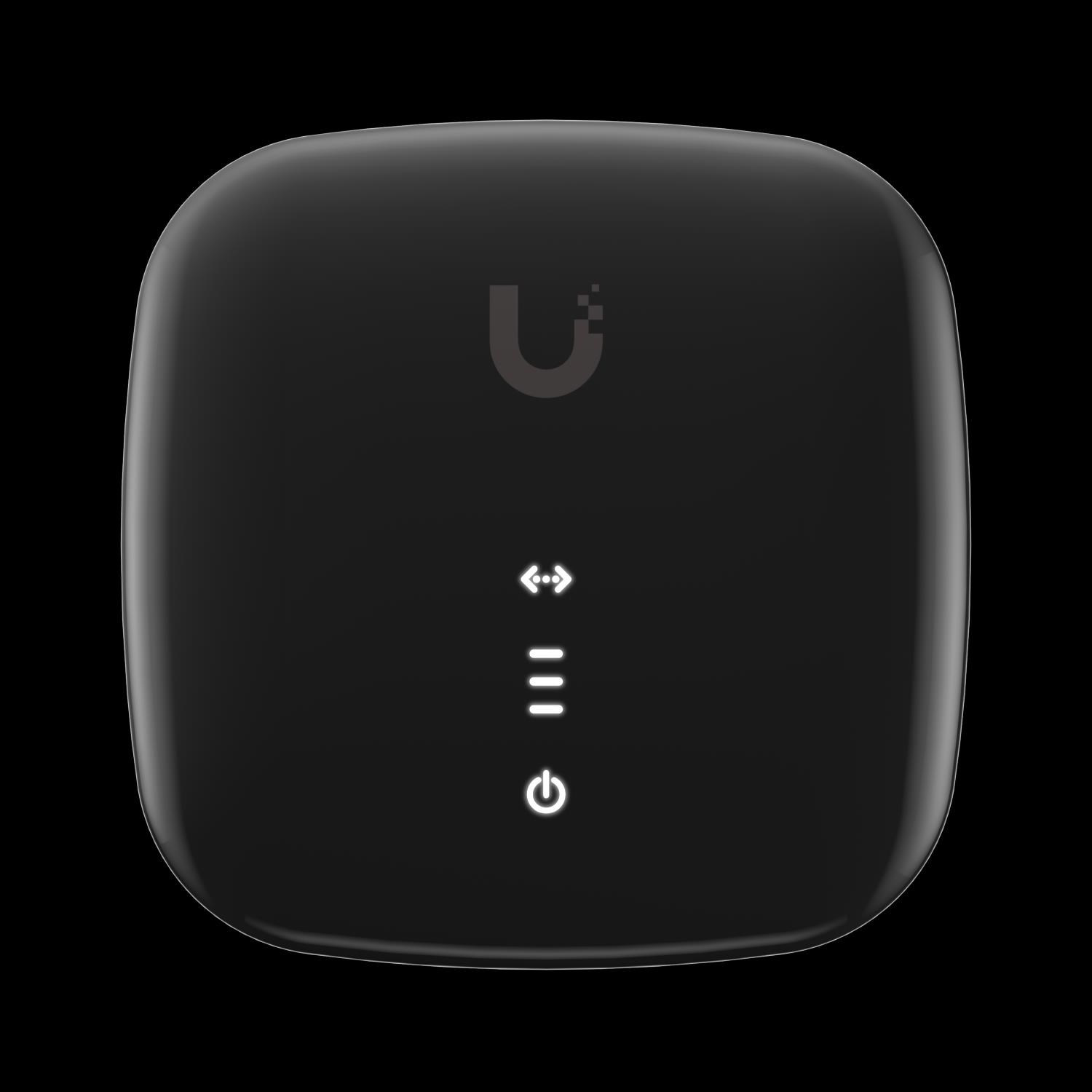

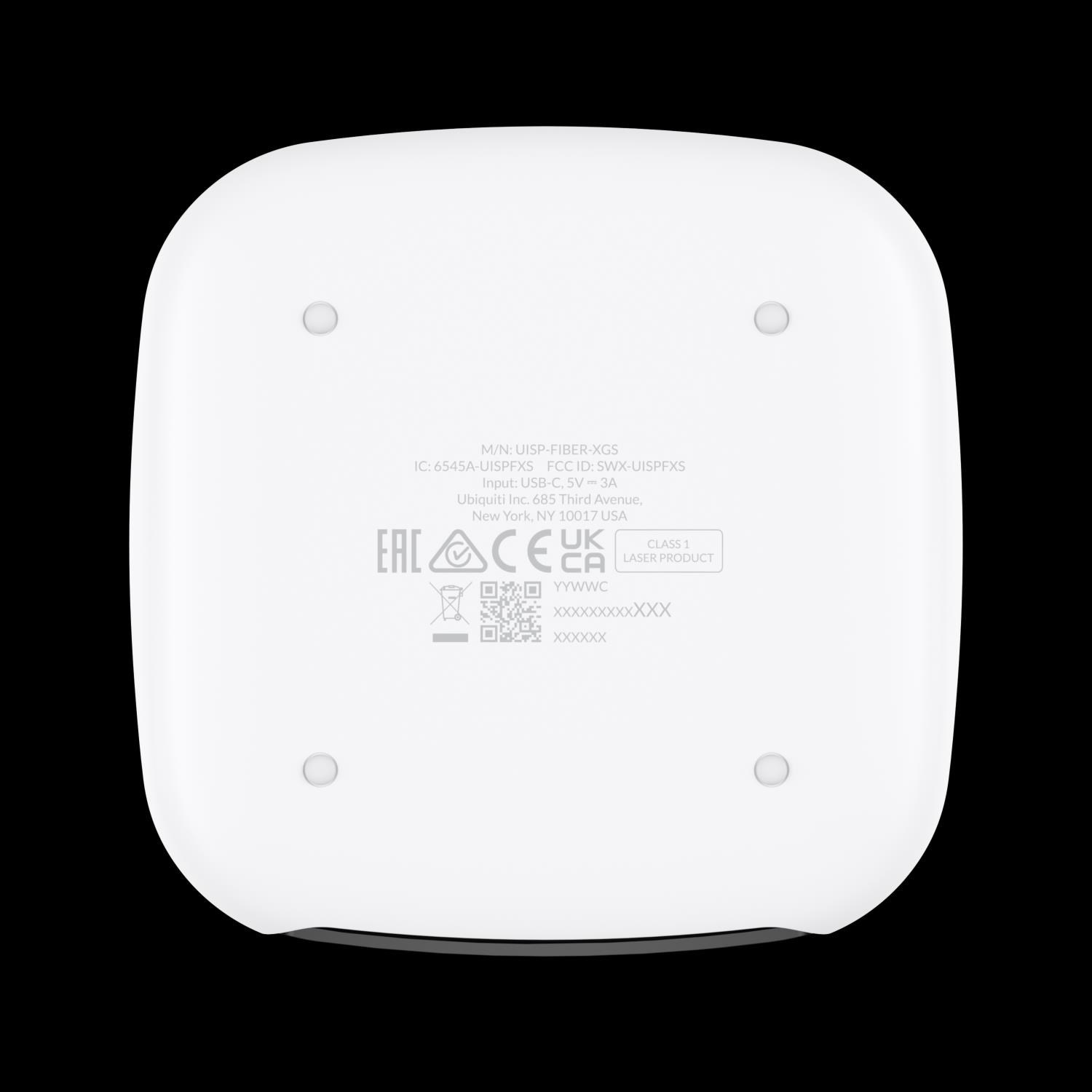

UBNT UISP-FIBER-XGS, UISP Fiber XGS-PON CPE
Popis a parametry
UBNT UISP-FIBER-XGS, UISP Fiber XGS-PON CPE
Description & Key Features UISP Fiber XGS-PON CPE Features: (1) XGS-PON optic SC/APC port (1) 10GbE RJ45 LAN port Bridge and Router Mode support Managed with the UISP application: Version 1.4.9 and later Technical Specifications Mechanical Dimensions 100 x 100 x 27 mm (3.9 x 3.9 x 1.1") Weight 220 g (0.49 lb) Enclosure material UV-stabilized polycarbonate Hardware Networking interface (1) SC/APC, ITU-G.9807 XGSPON WAN port (1) 100/1,000/2,500/5,000/10,000 MbE RJ45 LAN ports Management interface Ethernet in-band PON Memory 256 MB DDR Onboard flash storage 32 MB NOR Max. power consumption 8W Power method USB-C 5V DC, 3A Power supply 5V DC, 3A power adapter Supported voltage range 5V DC power adapter Total non-blocking line rate Downstream: 9.95 Gbit/s Upstream: 9.95 Gbit/s Normal TX range of optical module 4 to 9dBm Normal RX range of optical module -9 to -26dBm Button (1) Factory reset Operating temperature -15 to 45° C (5 to 113° F) Operating humidity 10 to 95% non-condensing Certifications CE, FCC, IC Fiber Operating wavelength TX: 1,270nm RX: 1,577nm Line code Scrambled NRZ Physical reach 20 km LEDs Power White: ON Ethernet Steady white: link up Blinking white: activity OFF: link down PON status (3) signal LEDs All-OFF: bootup 1x orange: signal too low (< -27 dbm) 1x white: signal low (>= -27 dbm) 2x white: signal good (>= -24 dbm) 3x white: signal strong (>= -12 dbm) 1x orange + 2x white: signal too strong (>= -9 dbm) 3x orange: no signal LEDs alternate between orange + white + orange and a signal strength indicator: no authority Software Management application UISP: Version 1.5.7 and later.
