TP-Link OMADA switch SG2206MP (5xGbE,1xSFP,4xPoE+,63W,fanless)
Popis a parametry
TP-Link OMADA switch SG2206MP (5xGbE,1xSFP,4xPoE+,63W,fanless)

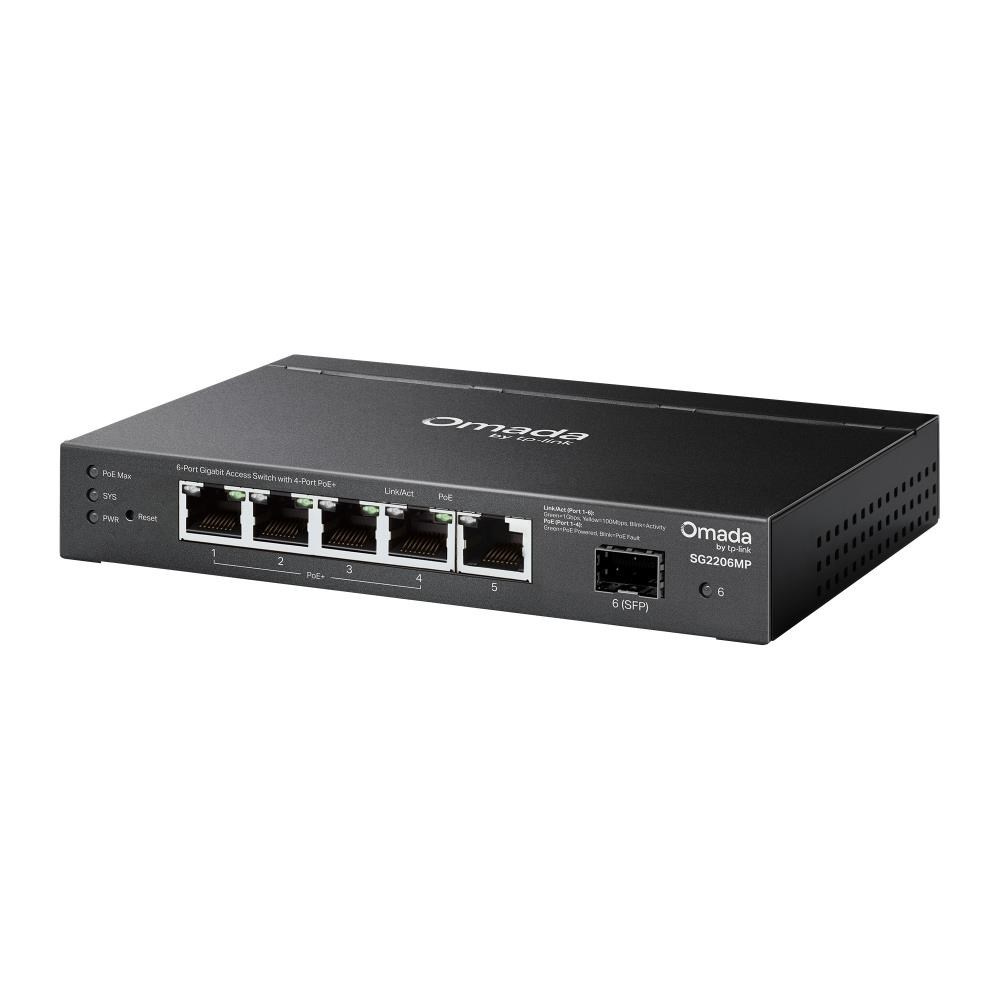

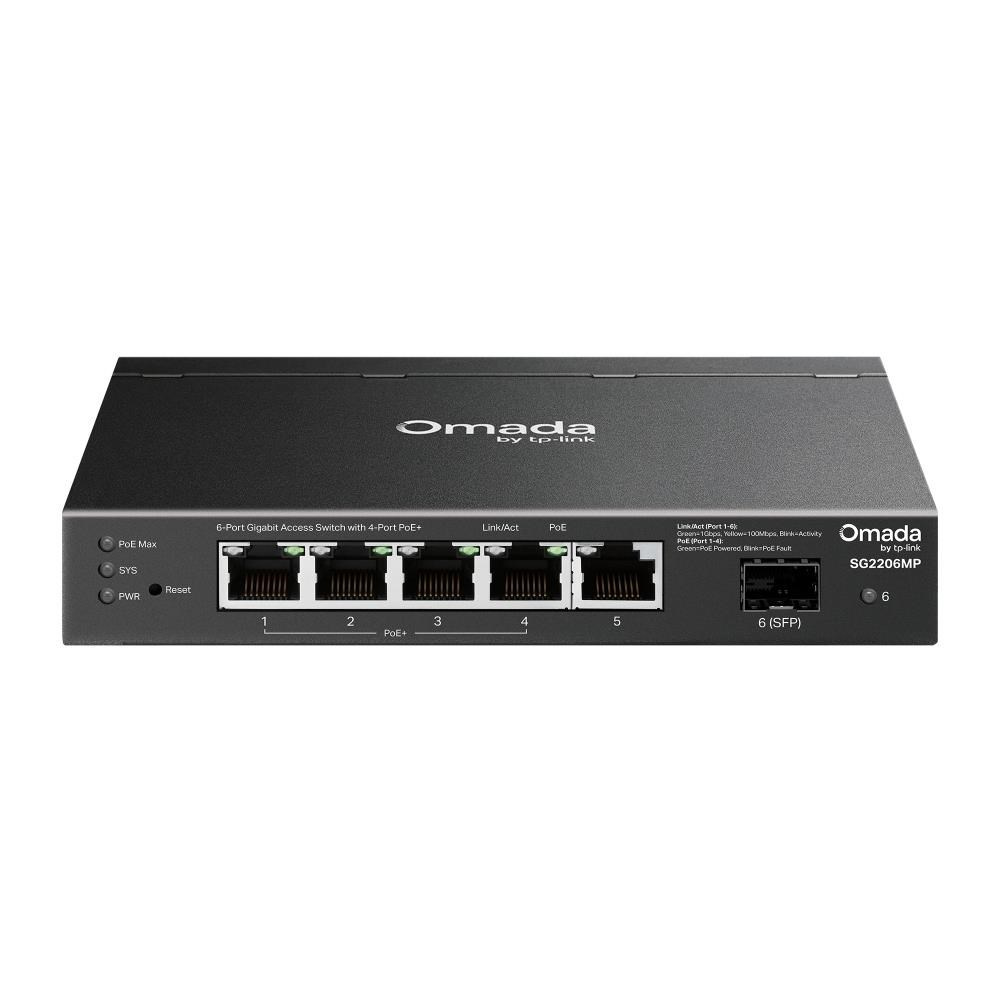

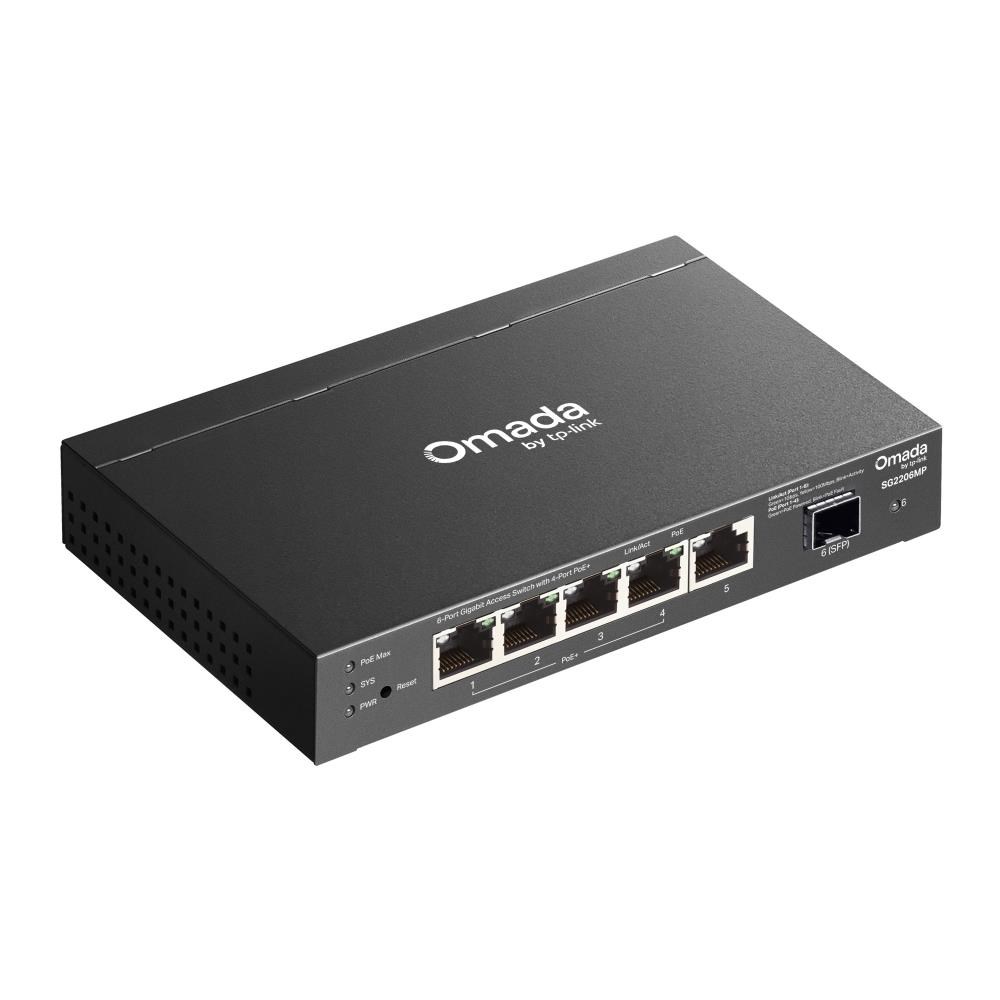

TP-Link OMADA switch SG2206MP
Omada Access 6portový gigabitový switch se 4 porty PoE+
- 5× gigabitových RJ45 portů (4× PoE+) a 1× gigabitový SFP slot
- Celkový PoE rozpočet 63 W, až 30 W na každý PoE+ port*
- Centralizovaná cloudová správa přes web nebo aplikaci Omada†
- Samostatná správa přes web, CLI, SNMP a RMON
- Statické směrování pomáhá efektivněji směrovat interní provoz
- VLAN, ACL, QoS a IGMP Snooping

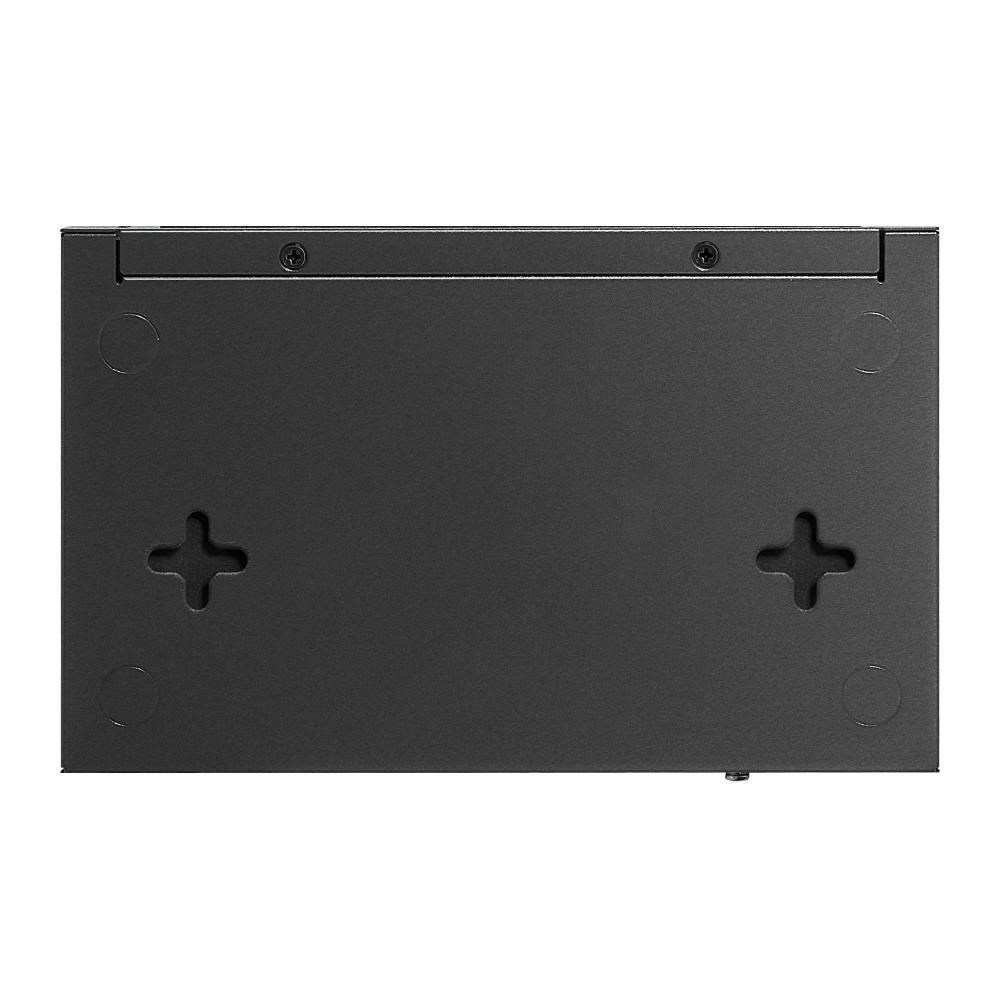

- Odolné kovové pouzdro a provedení pro umístění na stůl nebo montáž na stěnu
Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-access/sg2206mp
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • 4× 10/100/1000 Mbps PoE+ RJ45 Ports • 1× 10/100/1000 Mbps RJ45 Port • 1× Gigabit SFP Slot |
| Physical Security Lock | ? |

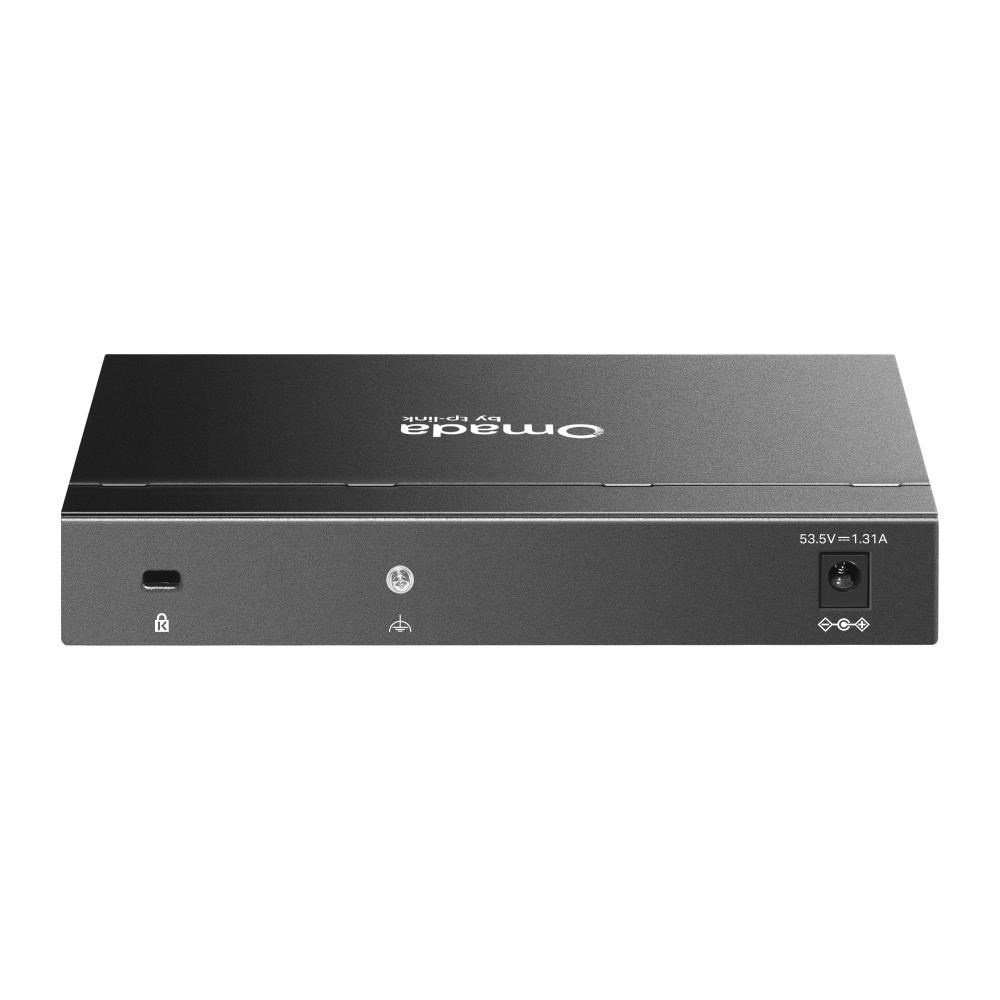

| Power Supply | 53.5 VDC / 1.31 A |
| PoE Ports (RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports: 4 Ports • PoE Power Budget: 63 W* • Fast PoE • Perpetual PoE |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm) |
| Mounting | Desktop / Wall Mounting |
| Max. Power Consumption | 73.7 W (110V/60Hz) (with 63 W PD connected) |
| Max. Heat Dissipation | 250.4 BTU/hr (110V/60Hz) (with 63 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 8.93 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2+ Features | • 16 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED • Spanning Tree - STP (802.1d) - RSTP (802.1w) - MSTP (802.1s) - STP Security: TC Protect, BPDU Filter/Protect, Root Protect |
| L2 Multicast | • 511 IPv4, IPv6 shared multicast groups • IGMP Snooping • Multicast VLAN Registration (MVR) • Multicast Filtering • Limited IP Multicast (256 profiles and 16 entries per profile) |
| Advanced Features | • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† |
| VLAN | • VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 16 Entries • Protocol VLAN • GVRP • Voice VLAN |
| Access Control List | • Support up to 230 entries • Time-Range • Time-based ACL • MAC ACL • IP ACL • IPv6 ACL • Combined ACL • Rule Operation: Permit/Deny • Policy Action - Mirroring - Redirect - Rate Limit - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding |
| Security | • IP-MAC-Port Binding • AAA • 802.1X - Port-based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection - ND Snooping • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • DHCP Filter • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control |
| IPv6 | • IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| MIBs | • MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9) |
| Management Features | |
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later) • Omada Hardware Controller (Requires built-in version 5.15.20 or later) • Omada Software Controller (Requires built-in version 5.15.20 or later) |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • IEEE 802.1az Energy Efficient Ethernet (EEE) • SNTP • System Log • Digital Diagnostic Monitoring (DDM) • Operation Administration and Maintenance (OAM) |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Content | • SG2206MP • Power Adapter • Power Cord • Rackmount Kit • Rubber Feet • Installation Guide |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: -5–40 ? (23–104 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH, non-condensing • Storage Humidity: 5–90% RH, non-condensing |
ParametryPorovnání
Technologie
Gigabit ethernet + Gigabit optika
Management
SNMP/RMON
Management
Web
Vlastnosti switche
Funkce POE po portech
Provedení
Desktop
Funkce
L2
Funkce
PoE (Power over ethernet)
Funkce
DHCP snooping
Funkce
Web management/Smart switch
Funkce
QoS (Quality of service)
Funkce
VLAN (virtual local area network)
Podporované standardy PoE
802.3af
Podporované standardy PoE
802.3at
Ventilátor
Ne
Počet portů LAN
4
Maximální počet portů
6
Počet SFP portů
1
PoE budget (W)
63
Počet PoE+ portů
4
