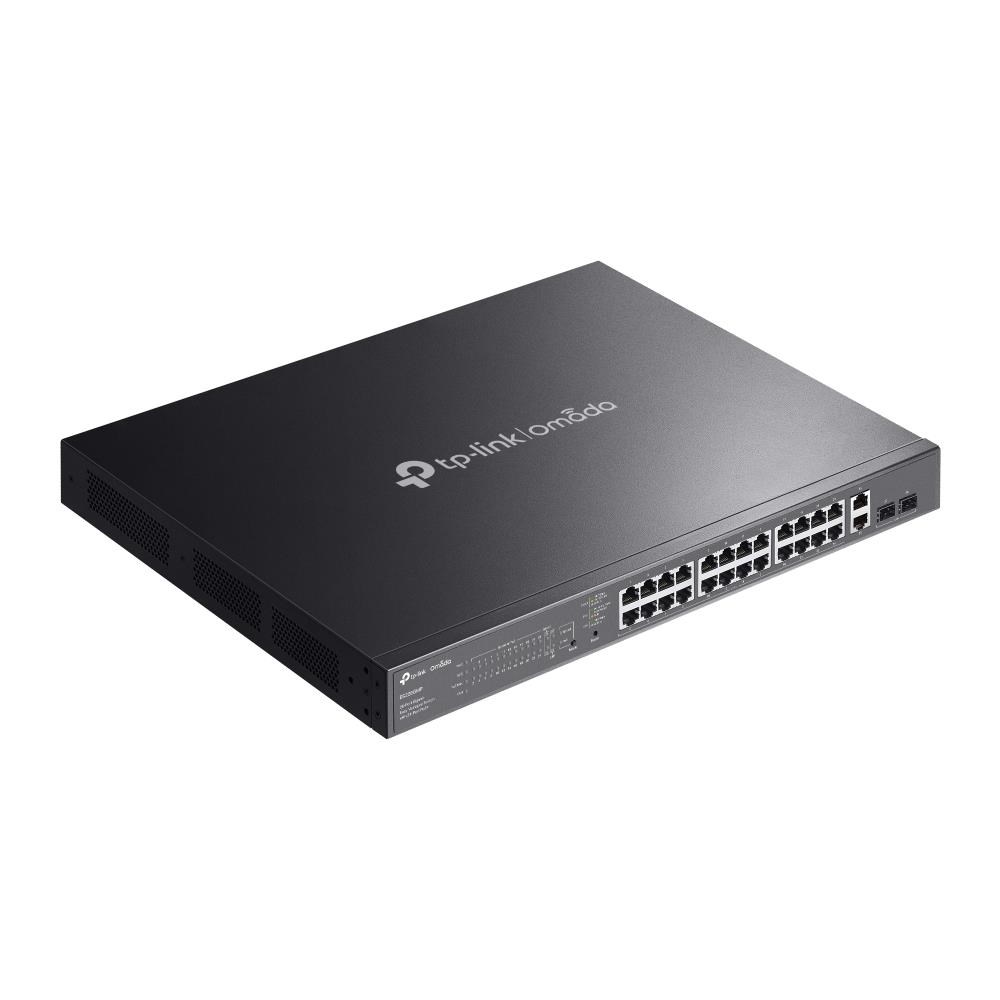

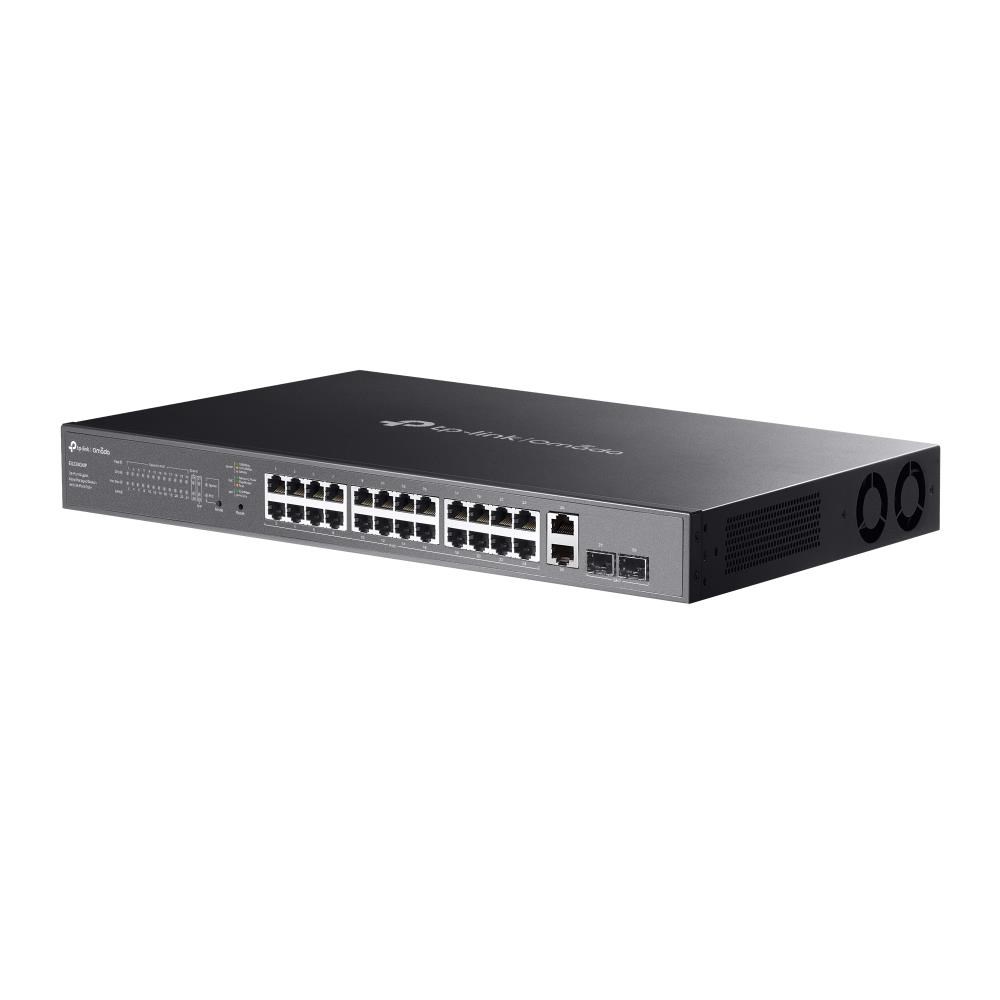

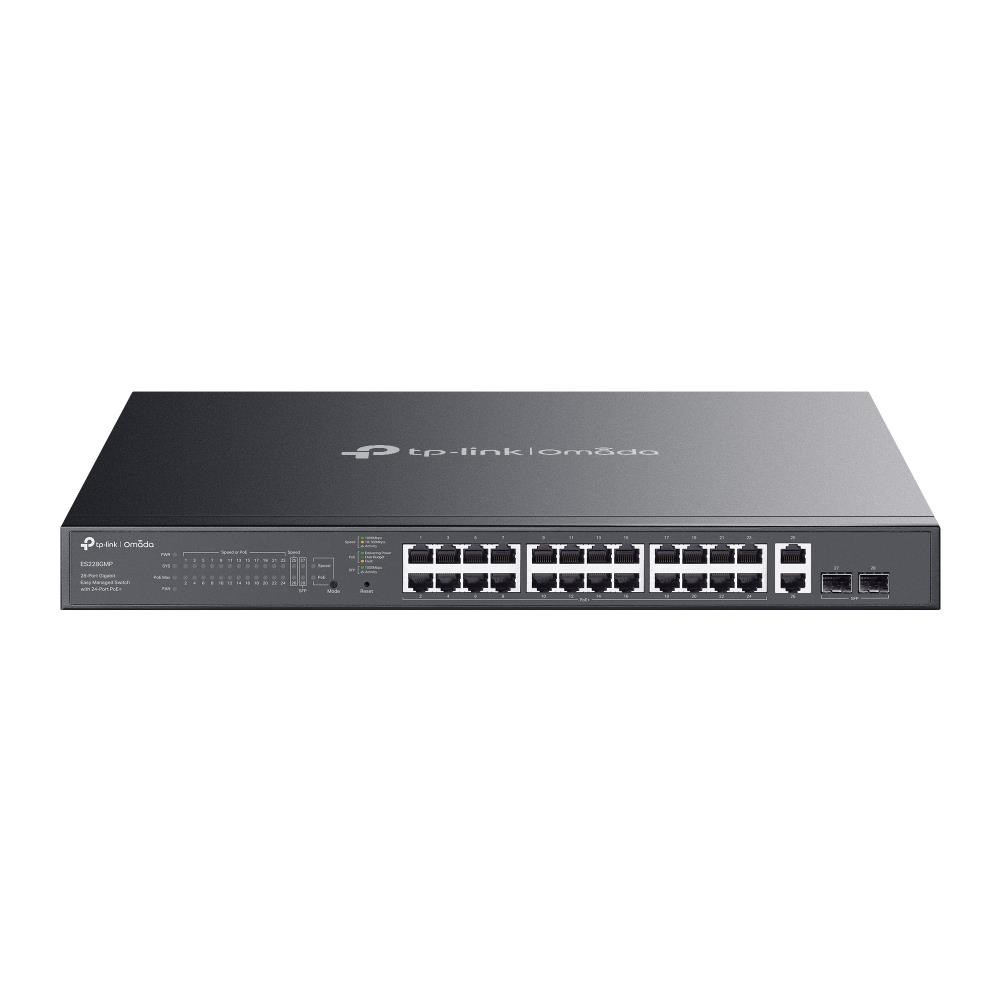

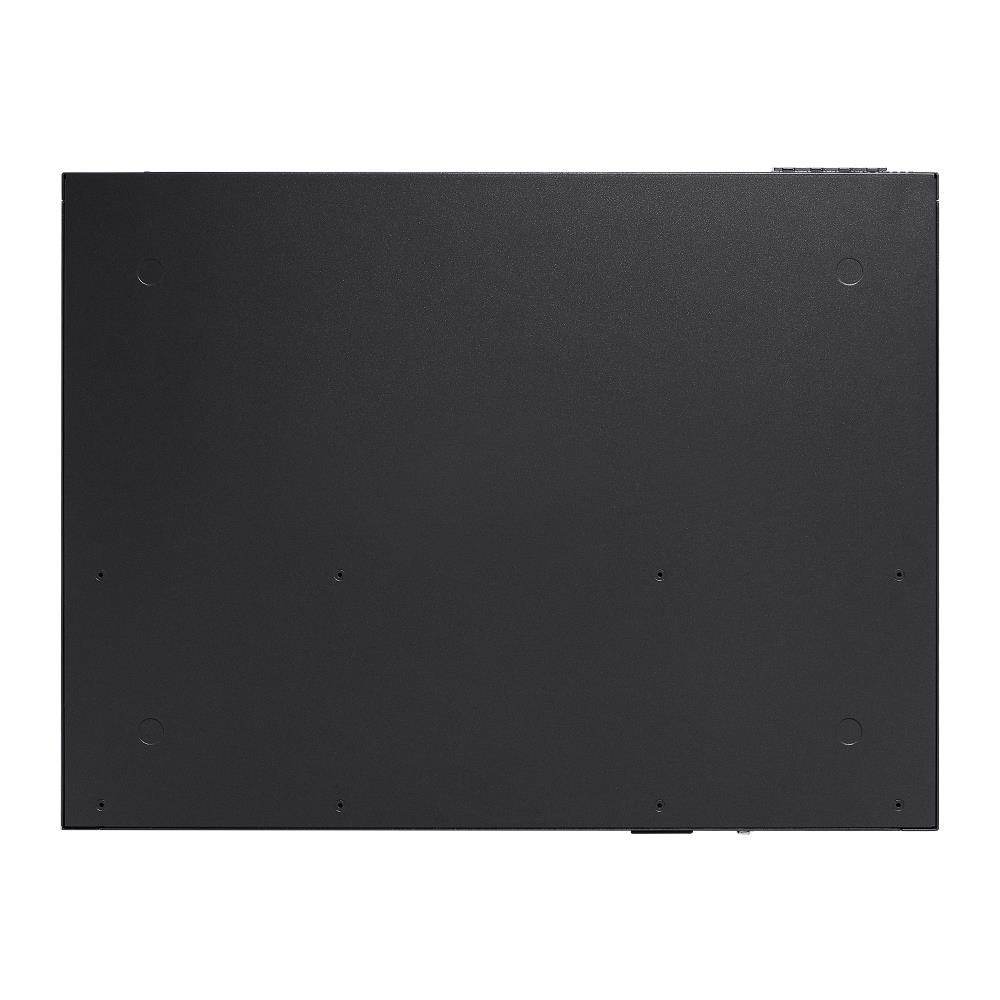

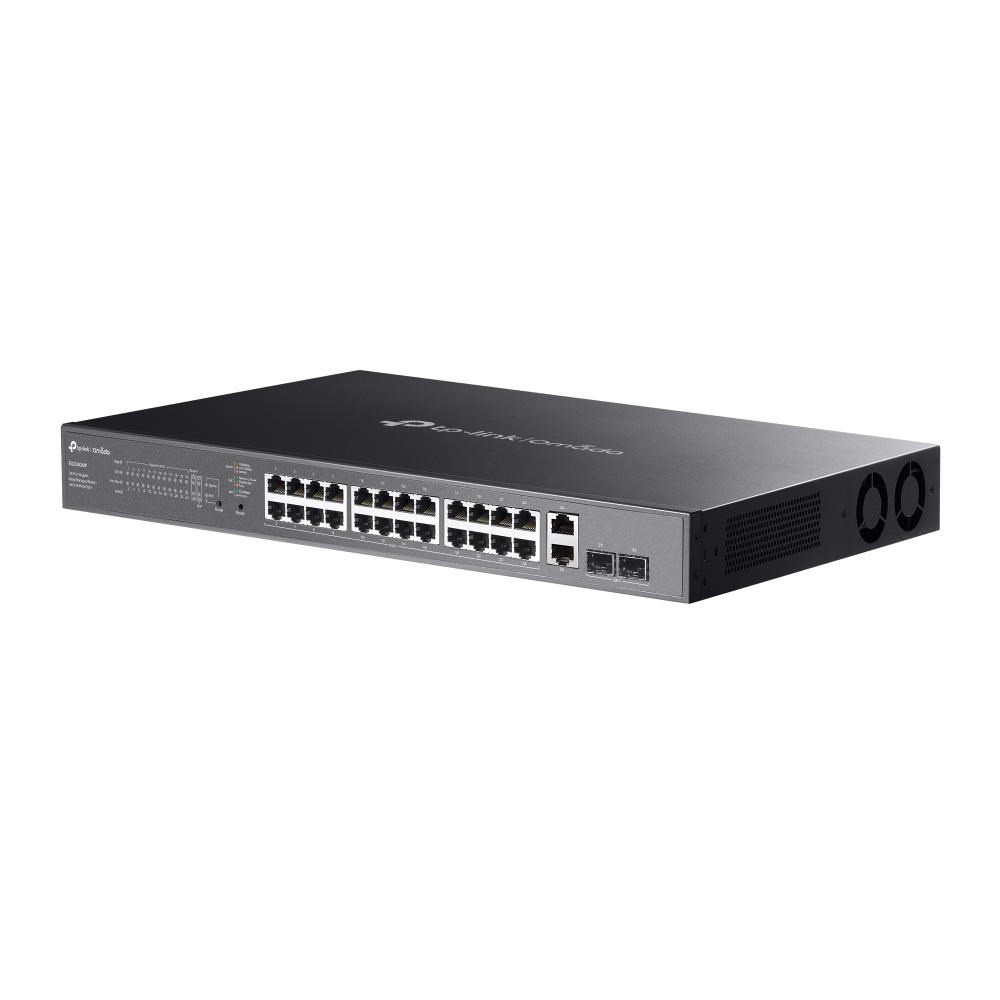

TP-Link OMADA switch ES228GMP (26xGbE,2xSFP,24xPoE+,384W)

Name: TP-Link OMADA switch ES228GMP (26xGbE,2xSFP,24xPoE+,384W)
Brand: TP-link
SKU: 324418
Price: 10161 CZK
Availability: InStock

-9%

Kód: 324418

Kód dod.: ES228GMP

EAN: 1210002600989

Záruka: 60 Měsíc(ů)

Výrobce: TP-link

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

TP-Link OMADA switch ES228GMP (26xGbE,2xSFP,24xPoE+,384W)

ParametryPorovnání

Technologie

Gigabit ethernet + Gigabit optika

Technologie

Gigabit Ethernet 1000Mbps

Management

Web

Provedení

Rack mounted 19"

Funkce

PoE (Power over ethernet)

Funkce

QoS (Quality of service)

Funkce

VLAN (virtual local area network)

Funkce

DHCP snooping

Funkce

Web management/Smart switch

Podporované standardy PoE

802.3af

Podporované standardy PoE

802.3at

Ventilátor

Ano

Počet portů LAN

Maximální počet portů

Počet portů Combo

Počet SFP portů

PoE budget (W)

384

Počet PoE+ portů

TP-Link OMADA switch ES228GMP (26xGbE,2xSFP,24xPoE+,384W)

HARDWARE FEATURES
Interface	• 24× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+) • 2× 10/100/1000 Mbps RJ45 Port • 2× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	2
Installation	Rackmountable
Physical Security Lock	?
Power Supply	100–240V AC, 50/60Hz
PoE Ports (RJ45)	• Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 24 ports • PoE Budget: 384W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery‡ • Up to 250m PoE transmission distance**
Dimensions ( W x D x H )	17.3 × 13.0 × 1.7 in.(440 × 330 × 44 mm)
Surge Protection	±6kV
PERFORMANCE
Switching Capacity	56 Gbps
Packet Forwarding Rate	41.67 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB
SOFTWARE FEATURES
Quality of Service	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control?
L2 Features	• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward
Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration†
OTHERS
Certification	FCC, CE, RoHS
Package Content	• ES228GMP • Power Cord • Mounting Brackets • Rubber Feet • Screws • Installation Guide
Environment	• Operating Temperature: -5?~45? (23?~113?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing

TP-Link OMADA switch ES228GMP (26xGbE,2xSFP,24xPoE+,384W)

TP-Link OMADA switch ES228GMP (26xGbE,2xSFP,24xPoE+,384W)

TP-Link OMADA switch ES228GMP

Omada 28-Port Gigabit Easy Managed Switch s 24-Porty PoE+

TP-Link OMADA switch ES228GMP (26xGbE,2xSFP,24xPoE+,384W)
