TP-Link OMADA switch ES208G (8xGbE,fanless)

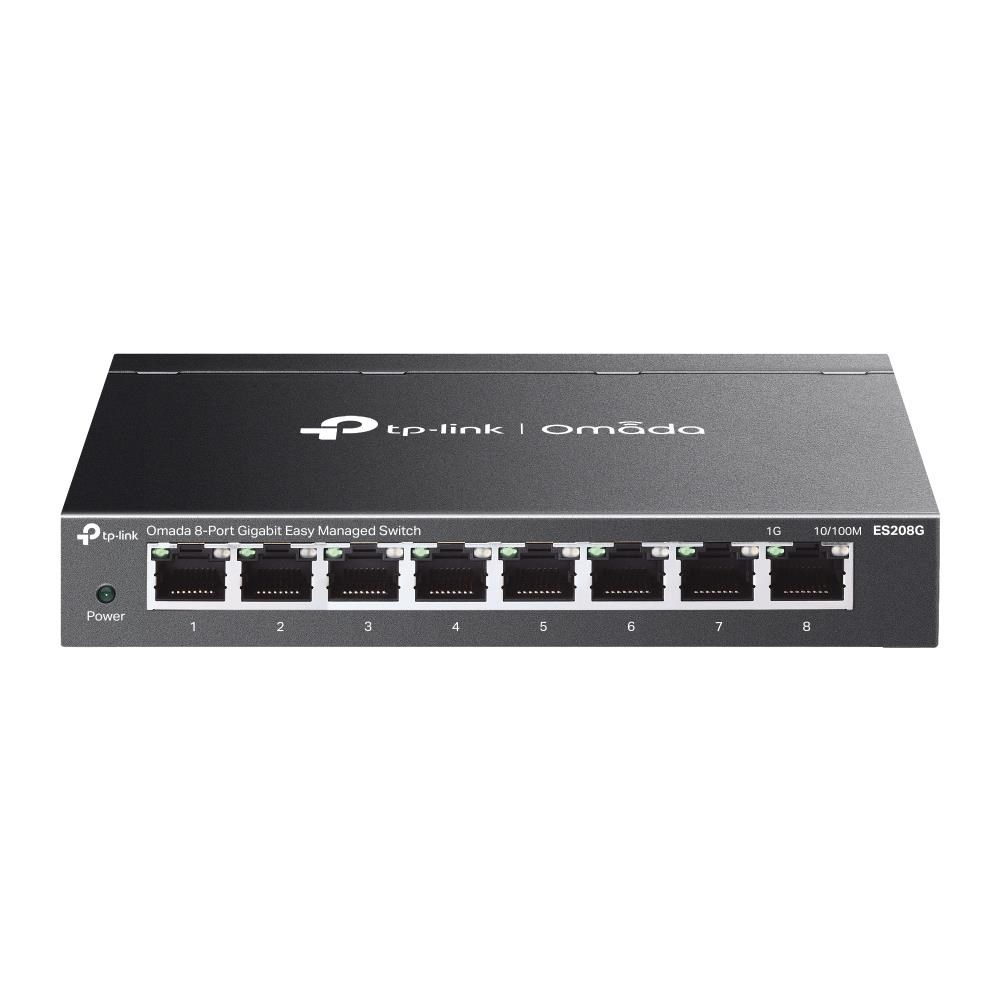

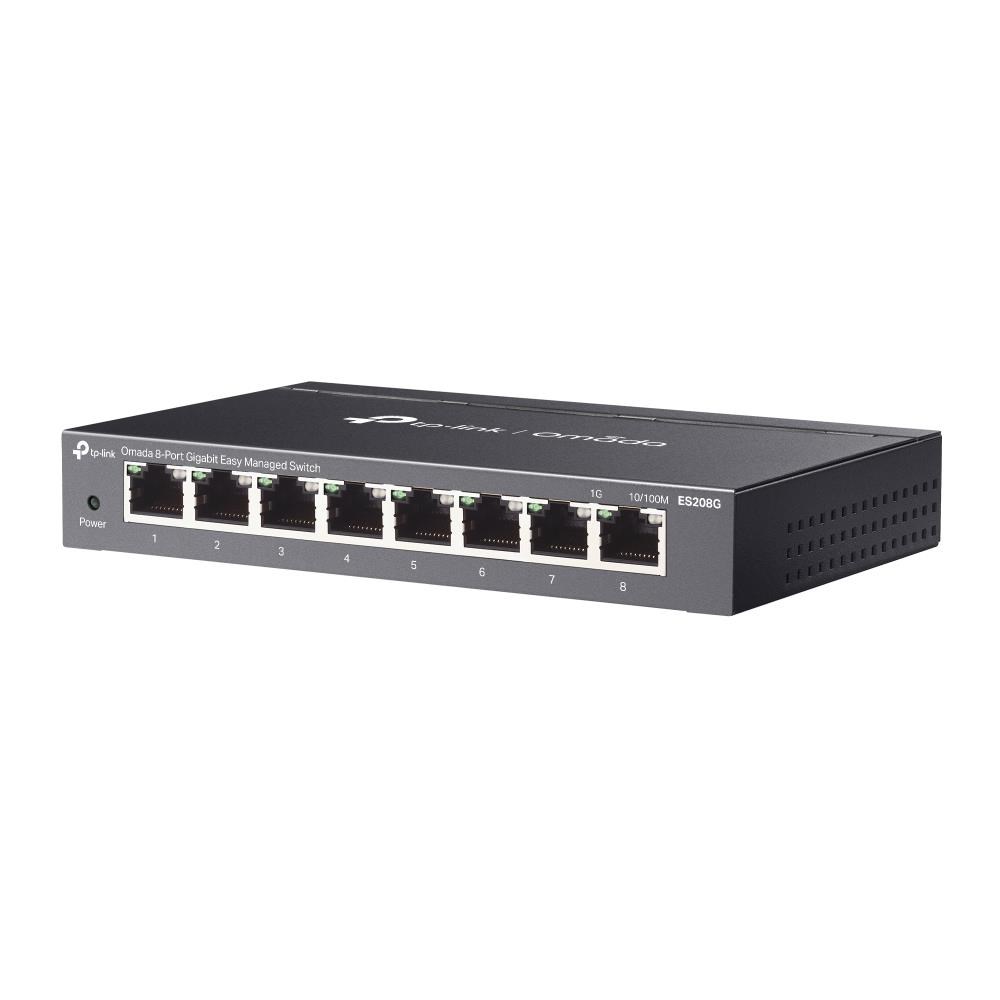

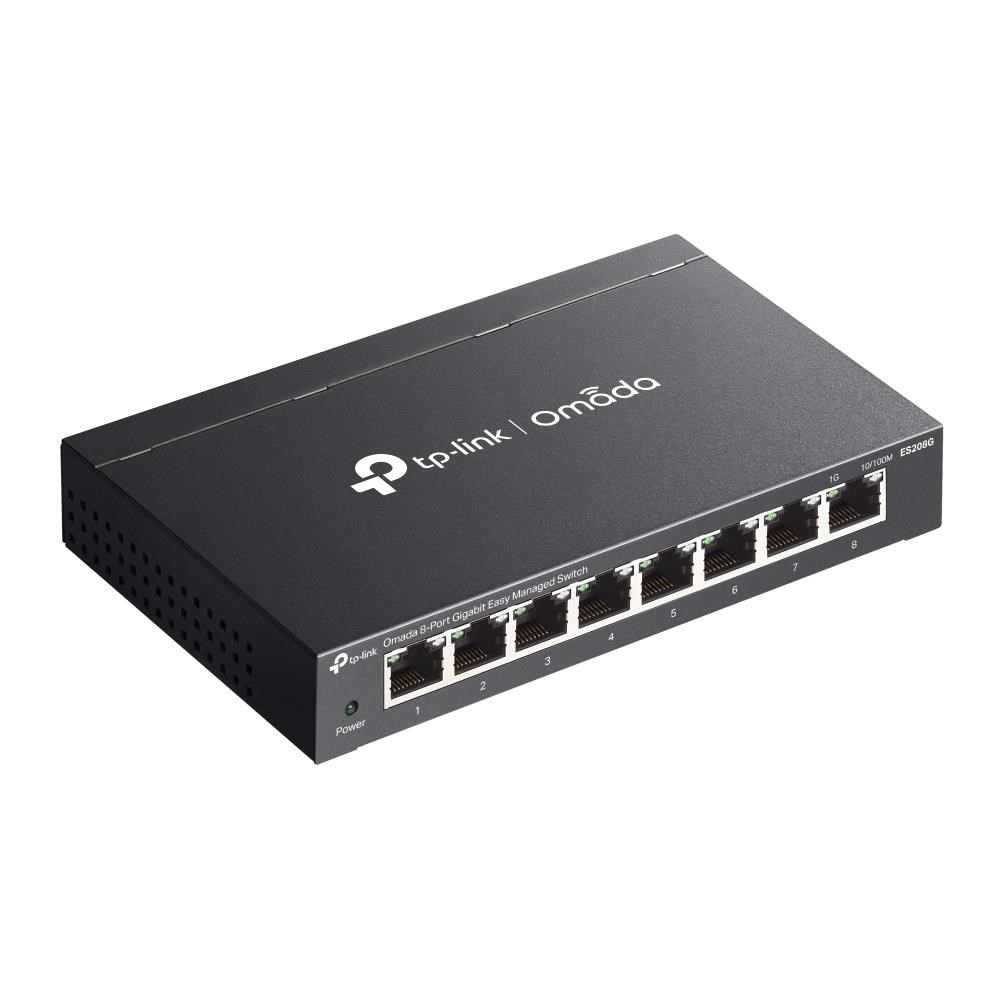

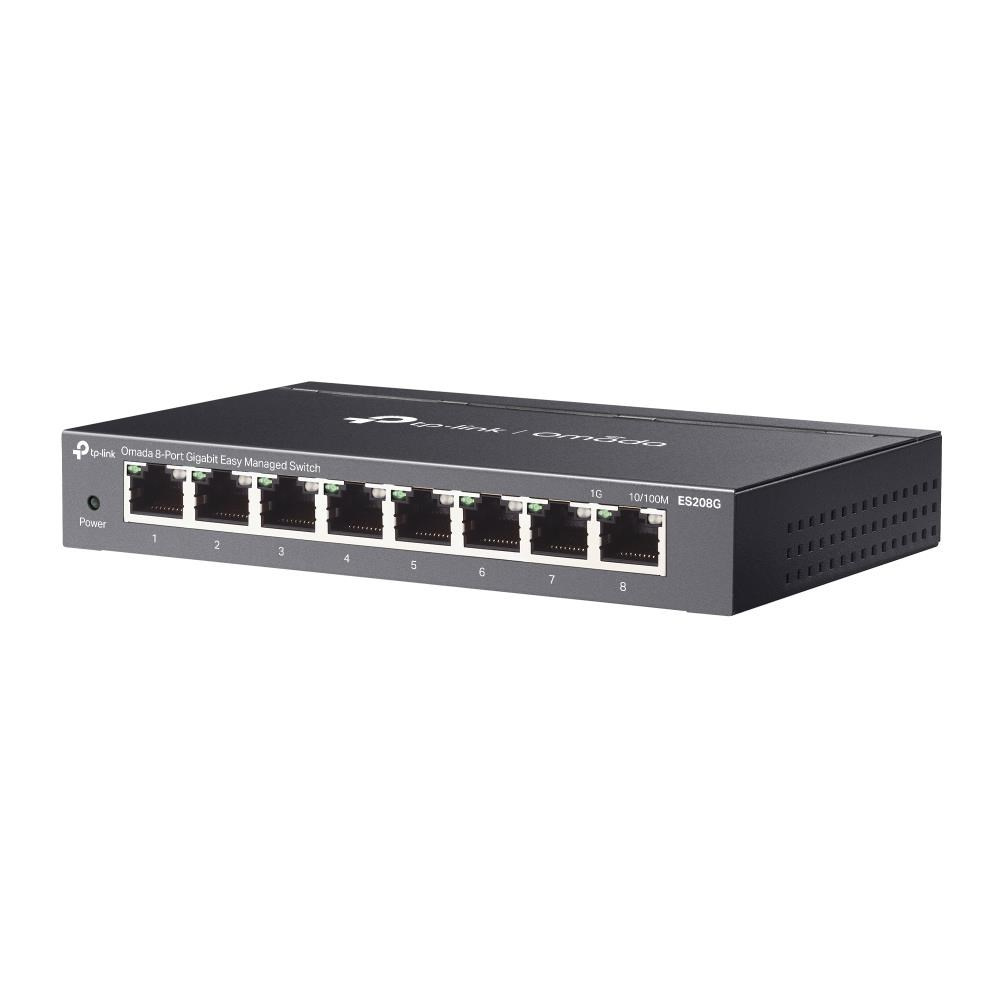

TP-Link OMADA switch ES208G
Omada 8portový gigabitový Easy Managed Switch
- 8× 10/100/1000Mb/s RJ45 portů
- Snadné použití: Podpora plug-and-play pro okamžité připojení a jednoduchou konfiguraci dalších funkcí
- Centrální správa přes cloud prostřednictvím webu nebo aplikace Omada
- VLAN, izolace portů, test kabelu, QoS pro spolehlivou síťovou infrastrukturu pro dohled
- Automatická prevence smyček, VLAN a IGMP Snooping
- Bezventilátorový design pro tichý provoz

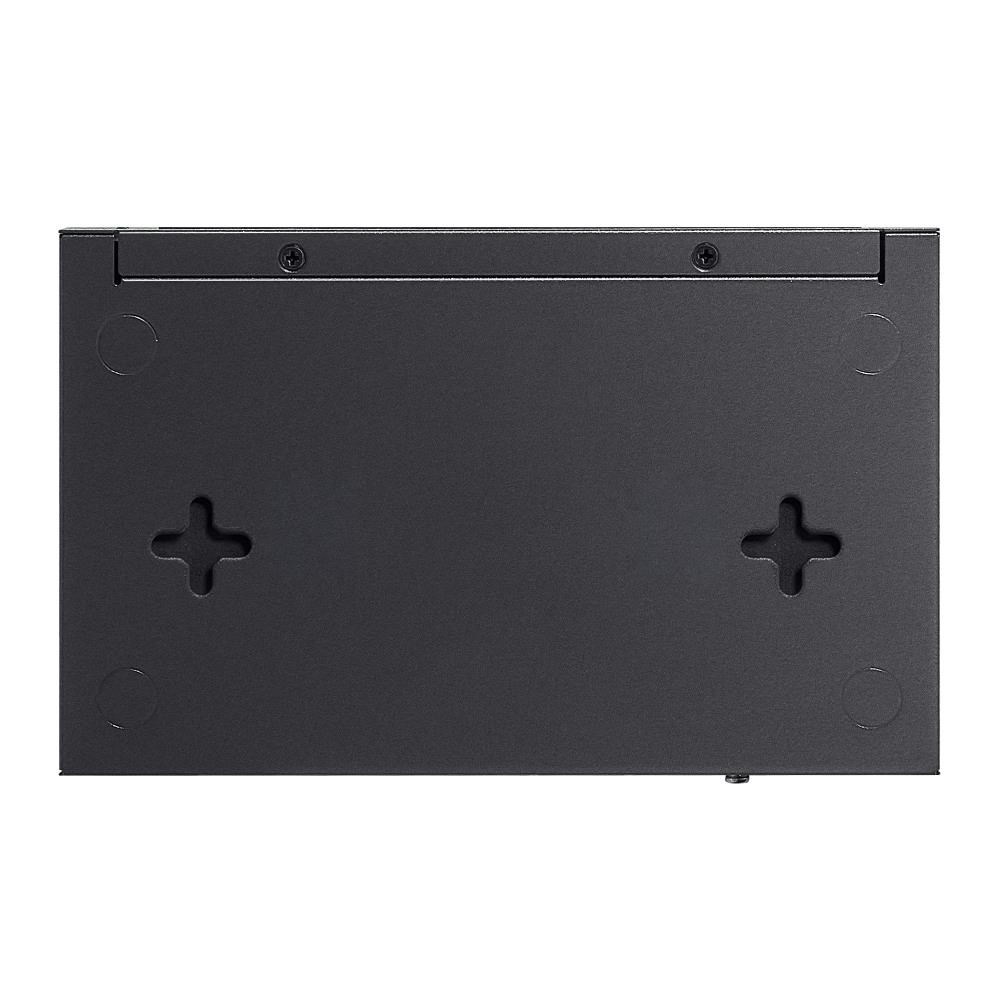

- Odolné kovové šasi a možnost instalace na stůl nebo na zeď
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-switch-agile/es208g/
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • 8× 10/100/1000 Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • Desktop • Wall Mount |
| Physical Security Lock | ANO |
| Power Supply | External DC Power Adapter (Output: 5 VDC/ 0.6 A) |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Surge Protection | ±6kV |
| PERFORMANCE | |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 8 K |
| Packet Buffer Memory | 4 Mbits |
| Jumbo Frame | 15 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control? |
| L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-And-Forward |
| MANAGEMENT | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Unified Configuration |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | • ES208G • Power Adapter • Installation Guide • Rubber Feet |
| Environment | • Operating Temperature: 0?~40? (32?~104?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
ParametryPorovnání
Technologie
Gigabit Ethernet 1000Mbps
Management
Web
Provedení
Desktop
Funkce
VLAN (virtual local area network)
Funkce
QoS (Quality of service)
Funkce
DHCP snooping
Funkce
L2
Funkce
Web management/Smart switch
Ventilátor
Ne
Počet portů LAN
8
Maximální počet portů
8
