TP-Link OMADA switch SG2210XMP-M2 (8x2,5GbE,2xSFP+,8xPoE+,160W,fanless)
Popis a parametry
TP-Link OMADA switch SG2210XMP-M2 (8x2,5GbE,2xSFP+,8xPoE+,160W,fanless)

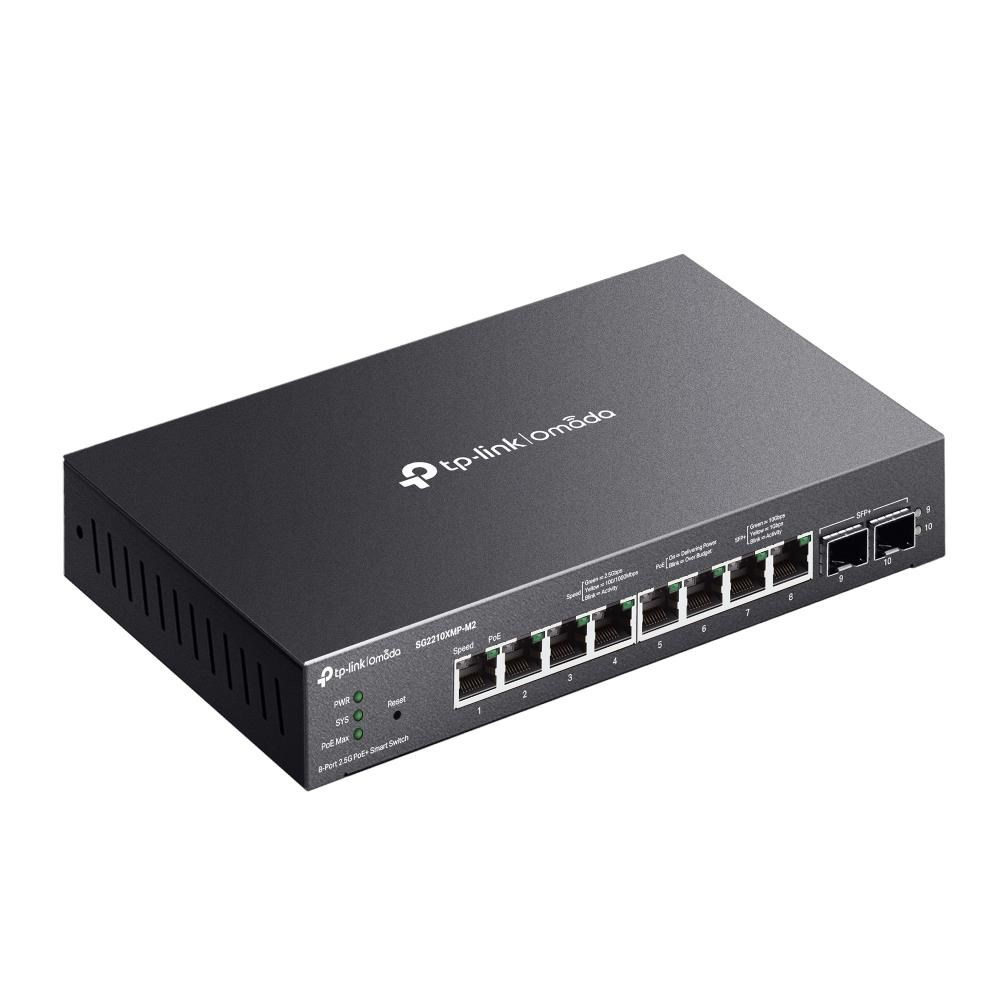

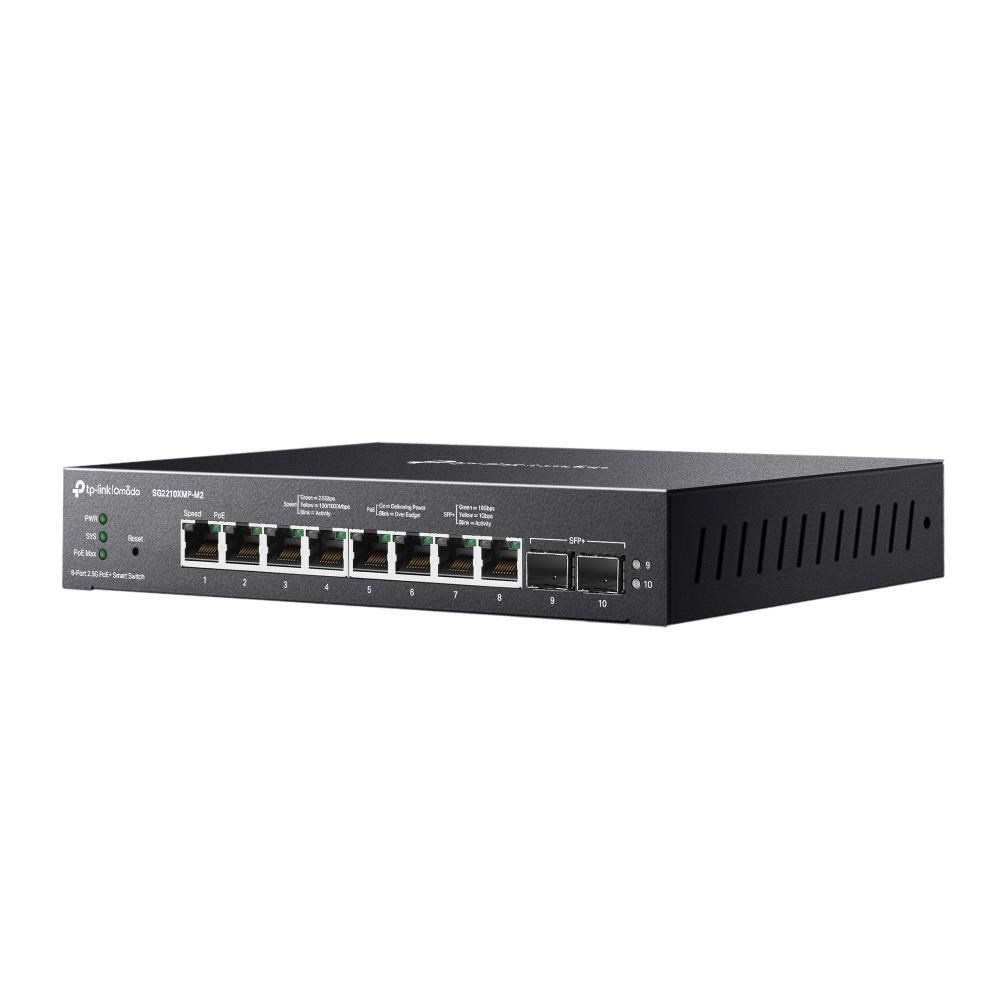

TP-Link OMADA switch SG2210XMP-M2
Omada inteligentní switch s 8 porty 2.5GBASE-T podporujícími PoE+ a 2 porty 10GE SFP+
- 8× 2.5 Gb/s 802.3at/af kompatibilní PoE+ porty
- 2× 10G SFP+ sloty
- Celkový PoE rozpočez 160 W s až 30 W PoE výstupem per port*
- Centralizovaná cloudová správa přes web nebo Omada aplikaci
- Podporuje samostatnou správu
- Statický routing
- Design bez ventilátorů pro tichý chod

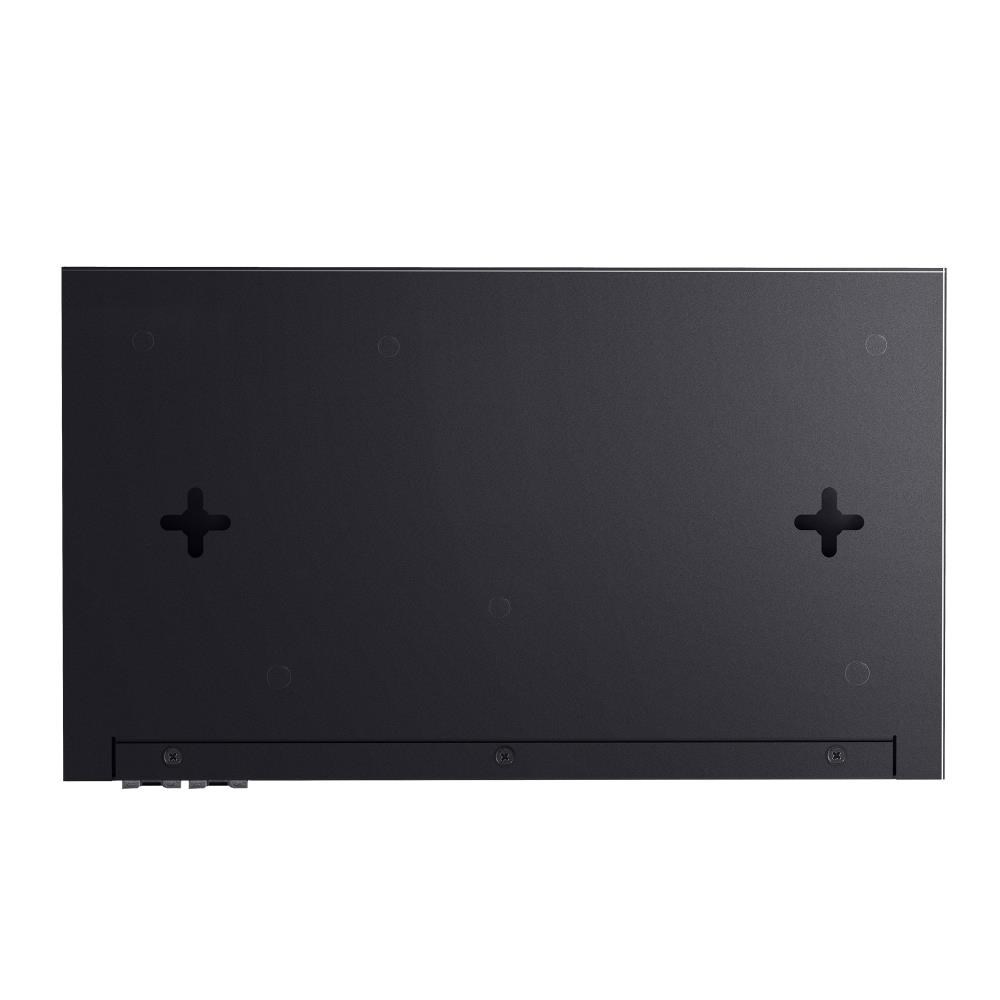

- Na stůl/montáž na stěnu
Více informací o technologii TP-Link PoE >
Více informací o Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-switch-smart/sg2210xmp-m2/
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • 8× 100/1000/2500 Mbps RJ45 PoE+ Ports • 2× 10G SFP+ Slots |
| Fan Quantity | Fanless |
| Physical Security Lock | ? |

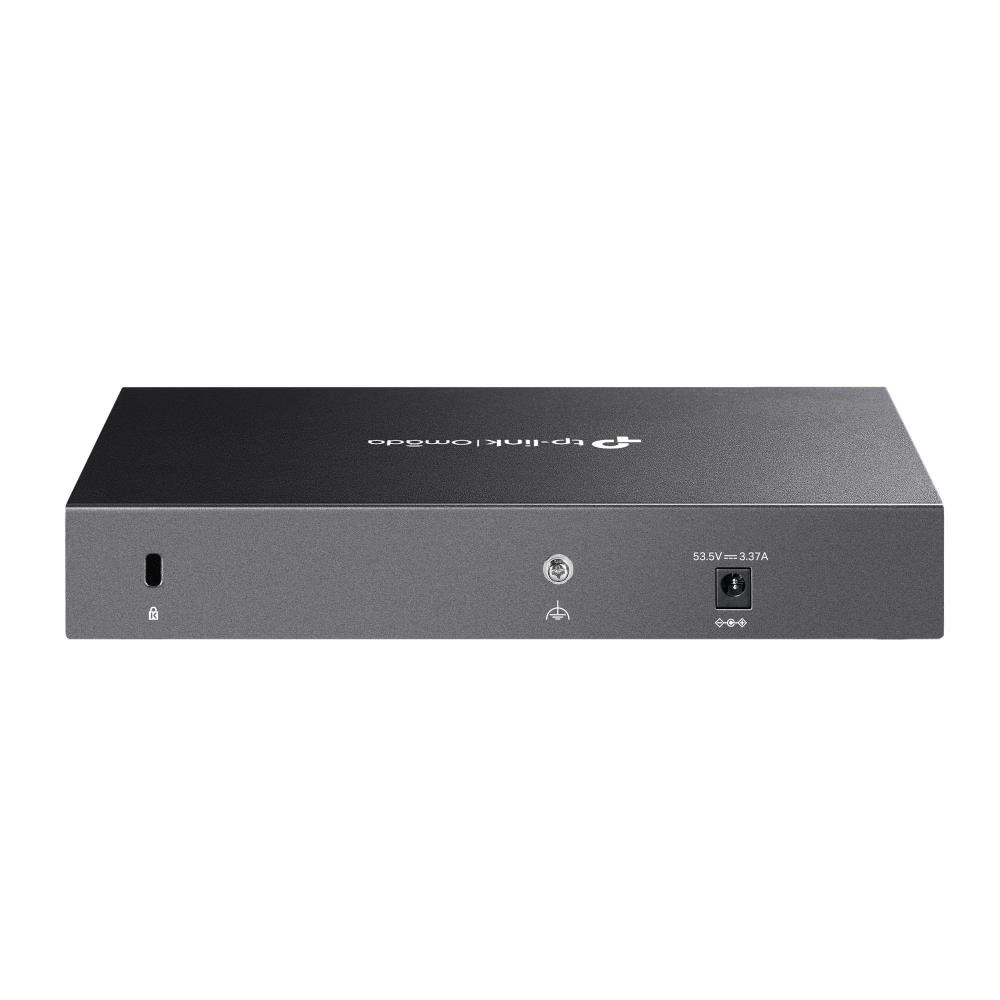

| Power Supply | 53.5VDC/3.37A Power Adapter |
| PoE Ports (RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports: 8 Ports • PoE Power Budget: 160 W* |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| Mounting | Desktop/Wall-Mounting |
| Max Power Consumption | 180.1 W (110V/60Hz) (with 160 W PD connected) |
| Max Heat Dissipation | 614.58 BTU/hr (110V/60Hz) (with 160 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 80 Gbps |
| Packet Forwarding Rate | 59.52 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2+ Features | • 32 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED |
| L2 Multicast | • 511 IPv4, IPv6 shared multicast groups • IGMP Snooping • Multicast VLAN Registration (MVR) • Multicast Filtering • Limited IP Multicast (256 profiles and 16 entries per profile) |
| Advanced Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule |
| VLAN | • VLAN Group - Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 12 Entries • Protocol VLAN • GVRP • Voice VLAN |
| Access Control List | • Support up to 230 entries • Time-based ACL • MAC ACL • IP ACL • IPv6 ACL • Combined ACL • Rule Operation: Permit/Deny • Policy Action - Mirroring - Redirect - Rate Limit - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding |
| Security | • IP-MAC-Port Binding • AAA • 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection - ND Snooping • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • DHCP Filter • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control |
| IPv6 | • IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| MIBs | • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • SG2210XHP-M2 Switch • Power Adapter • Quick Installation Guide • Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: 0–40 ? (32–104 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
.
ParametryPorovnání
Technologie
2,5 Gigabit ethernet + 10 Gigabit optika
Management
SNMP/RMON
Management
Web
Vlastnosti switche
Funkce POE po portech
Provedení
Desktop
Funkce
QoS (Quality of service)
Funkce
VLAN (virtual local area network)
Funkce
L2
Funkce
PoE (Power over ethernet)
Funkce
DHCP snooping
Funkce
Web management/Smart switch
Funkce
L2+
Podporované standardy PoE
802.3af
Podporované standardy PoE
802.3at
Ventilátor
Ne
Počet portů LAN
8
Maximální počet portů
10
PoE budget (W)
160
Počet PoE+ portů
8
