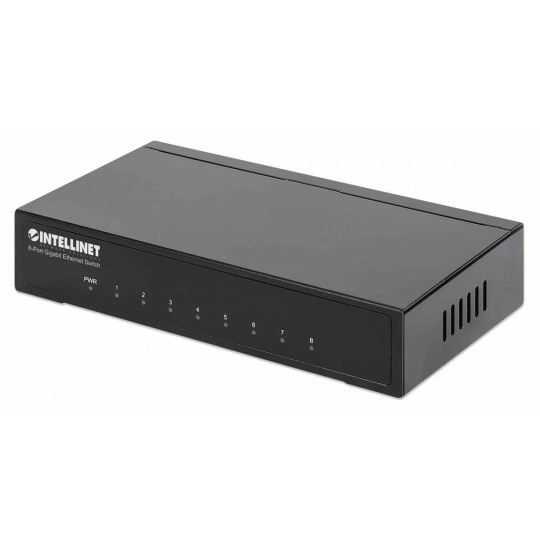

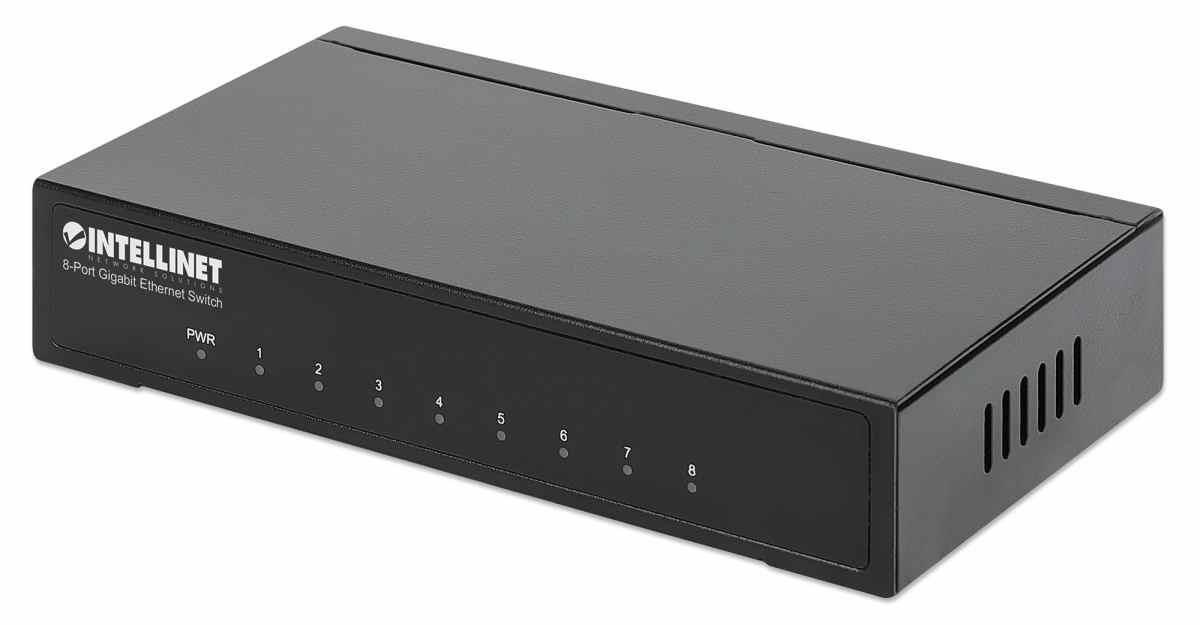

Intellinet 8-Port Gigabit Ethernet Switch, kovový
Popis a parametry
Intellinet 8-Port Gigabit Ethernet Switch, kovový
8-Port Gigabit Ethernet Switch Metal Color: Black •10/100/1000 auto-sensing Auto MDI-X ports — automatically detect optimal network speeds •High performance, half and full duplex, with zero packet loss •Full flow control support provides optimum performance •Auto-learning of network configuration •Supports up to 8192 MAC address entries •128 kBytes buffer memory •Supports jumbo frames up to 9 kBytes •Store and forward switching architecture •Non-blocking wire-speed forwarding and filtering Standards •IEEE 802.3 (10Base-T Ethernet) •IEEE 802.3u (100Base-TX Fast Ethernet) •IEEE 802.3ab (Gigabit Ethernet) •IEEE 802.3x (Flow Control and Backpressure) General •ANSI/IEEE 802.3 NWay auto-negotiation •Non-blocking, store and forward switching architecture •Backpressure flow control for half duplex mode on 10/100 Mbps ports •Connectors: 8 10/100/1000 Mbps RJ45 ports •Switch architecture: store and forward switch technology •Network cables: - 10Base-T: Cat3, 4, 5 UTP/STP - 100Base-TX: Cat5 UTP/STP - 1000Base-T: Cat5e UTP/STP •Certifications: FCC Class A, CE Class A Performance •Filter/forward rate - 10Base-T: 14,880 pps (packets per second) - 100Base-TX: 148,800 pps (packets per second) - 1000Base-T: 1,488,000 pps (packets per second) •MAC address table: 8K •Jumbo frame support: 9K LEDs •Power •LINK/ACT for each 10/100/1000 Mbps port Power •DC input: 5 V, 1 A Environmental •Plastic housing, desktop size •Dimensions: 155 (W) x 85 (L) x 26 (H) mm (6.1 (W) x 3.3 (L) x 1.0 (H) in.) •Weight: 0.6 kg (1.3 lbs.) •Operating temperature: 0 – 40°C (32 – 104°F) •Operating humidity: 10 – 90% RH, non-condensing Package Contents •8-Port Gigabit Ethernet Switch •External power adapter.
ParametryPorovnání
Maximální počet portů
8
Technologie
Gigabit Ethernet 1000Mbps
Management
Ne
Provedení
Desktop
Přenosová rychlost LAN (Mb/s)
Počet portů LAN
8
Ventilátor
Ne
Přenosová rychlost LAN (Mb/s)
1000
Počet portů LAN
8
Přenosová rychlost LAN (Mb/s)
1000
Maximální počet portů
8
Intellinet 8-Port Gigabit Ethernet Switch, kovový
