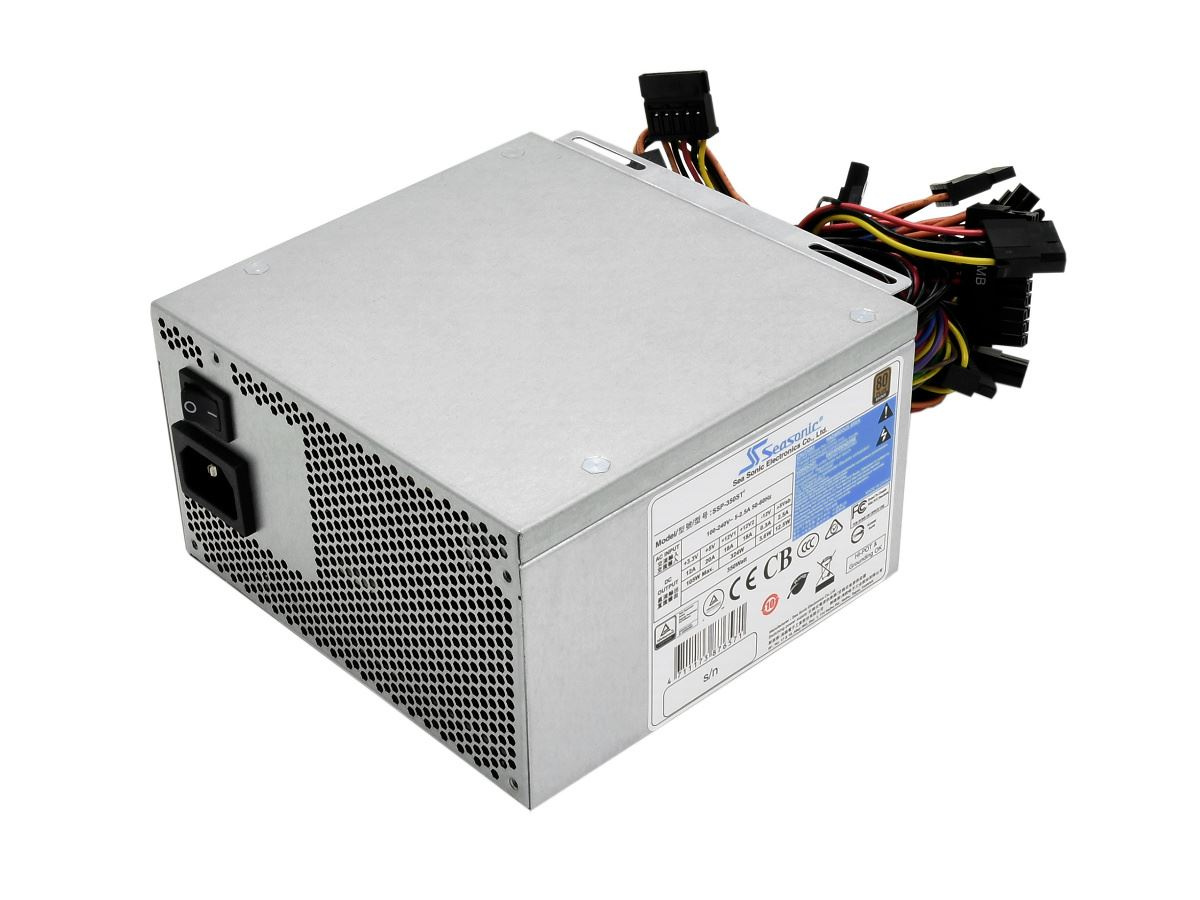

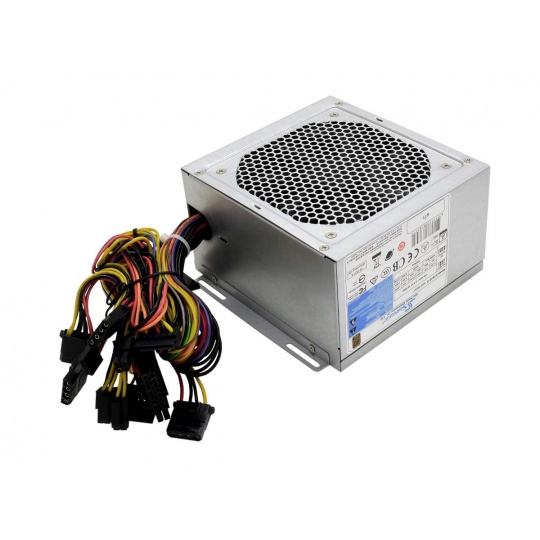

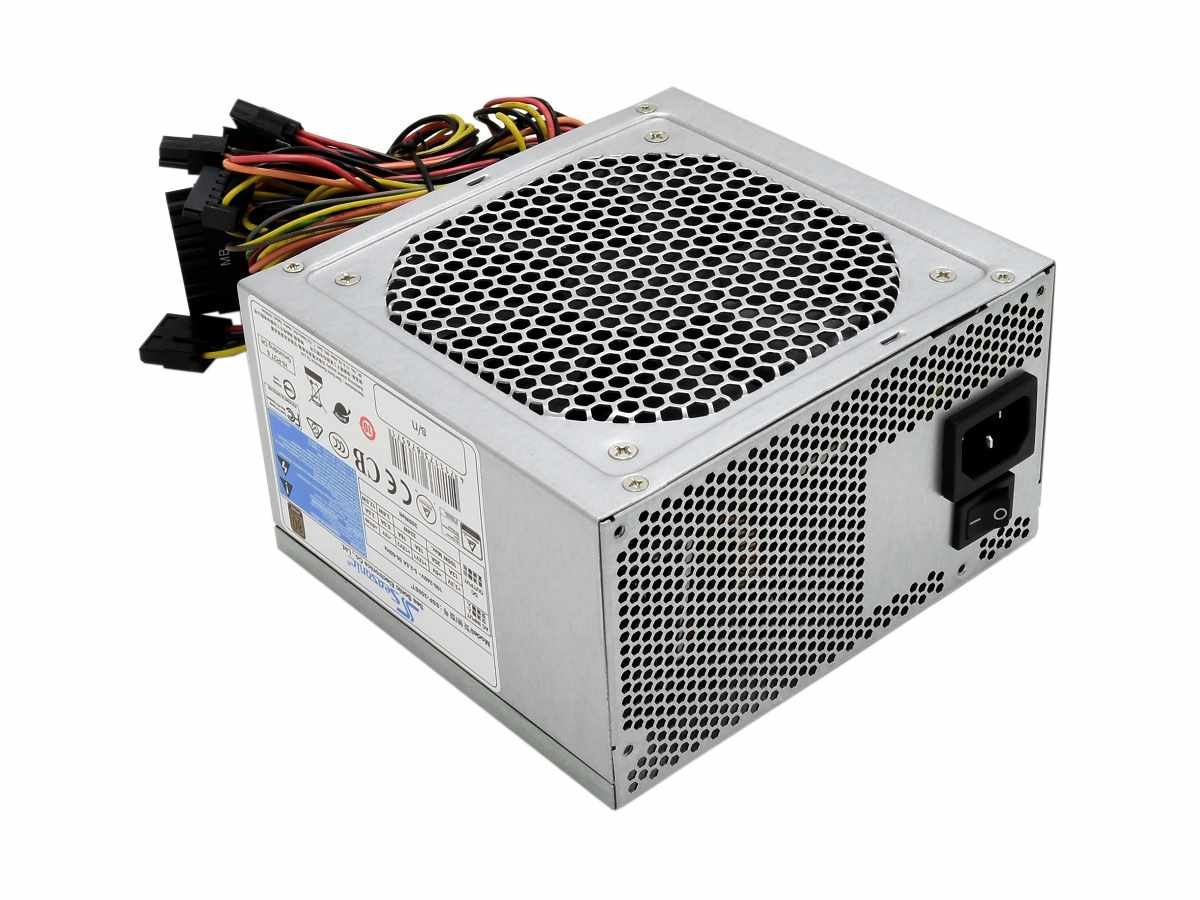

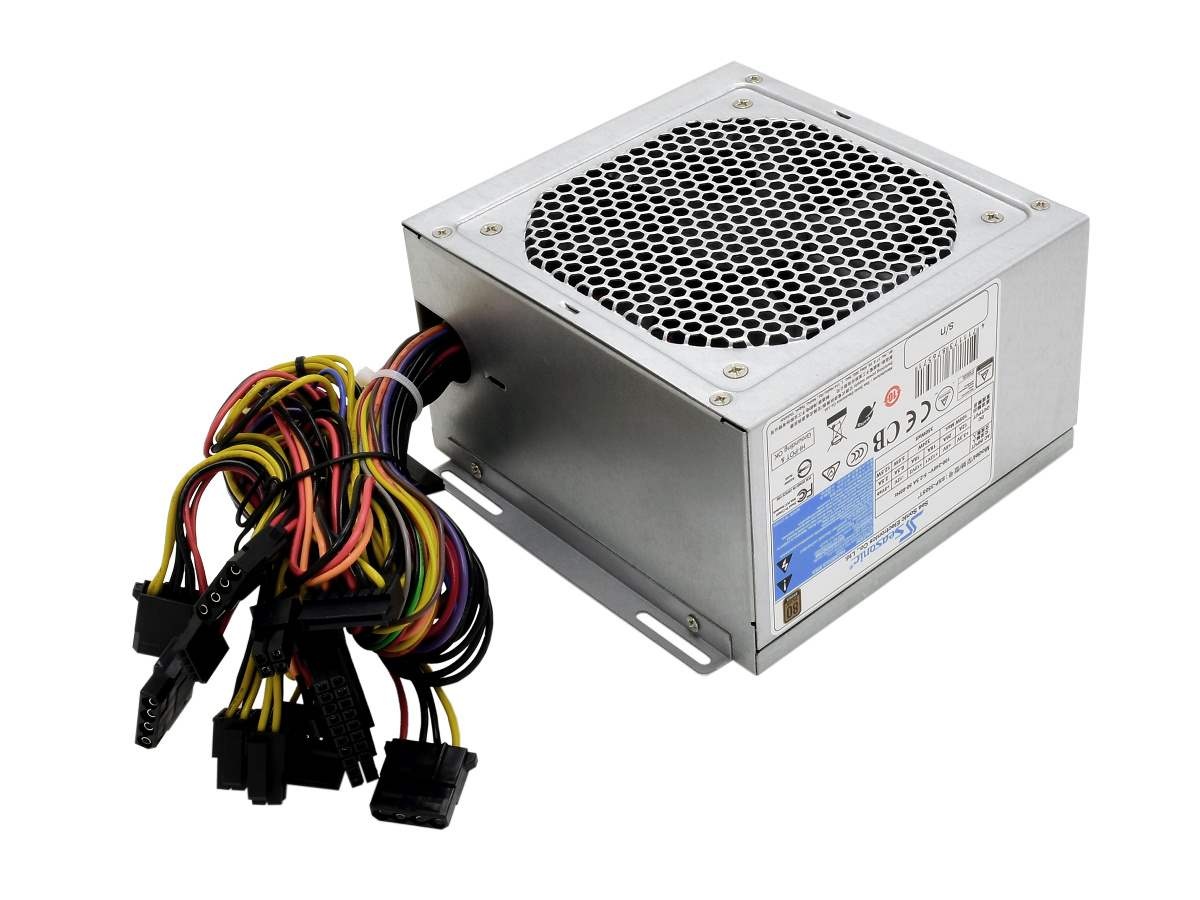

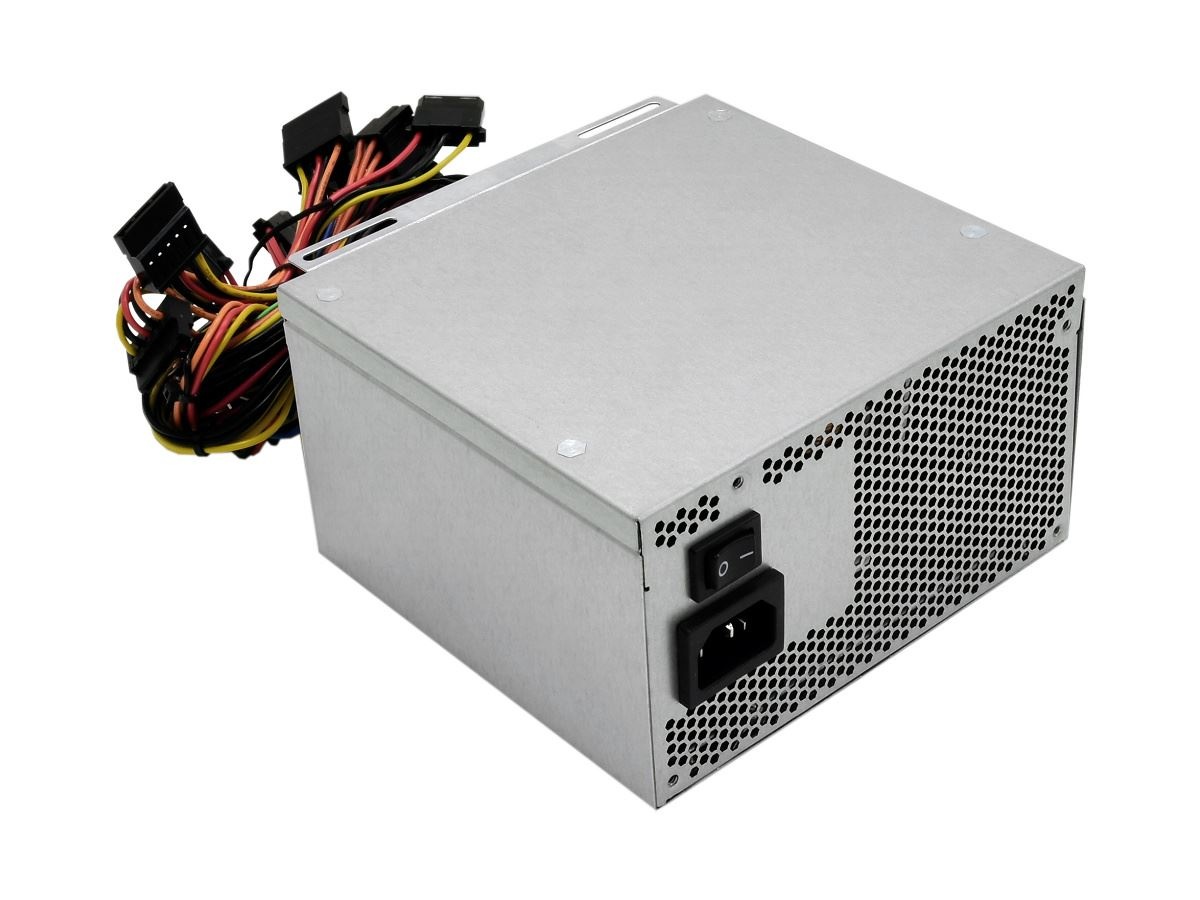

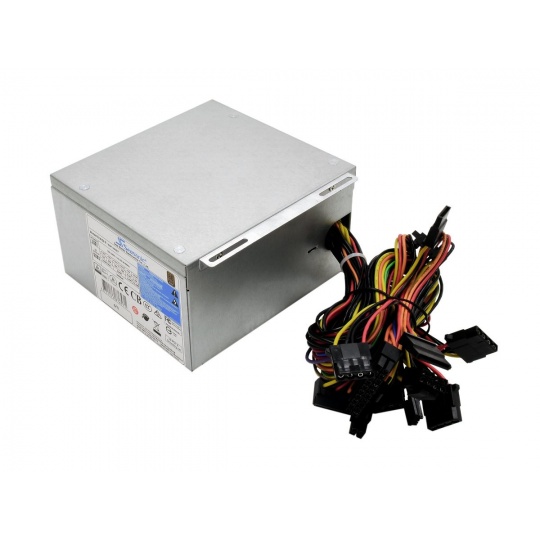

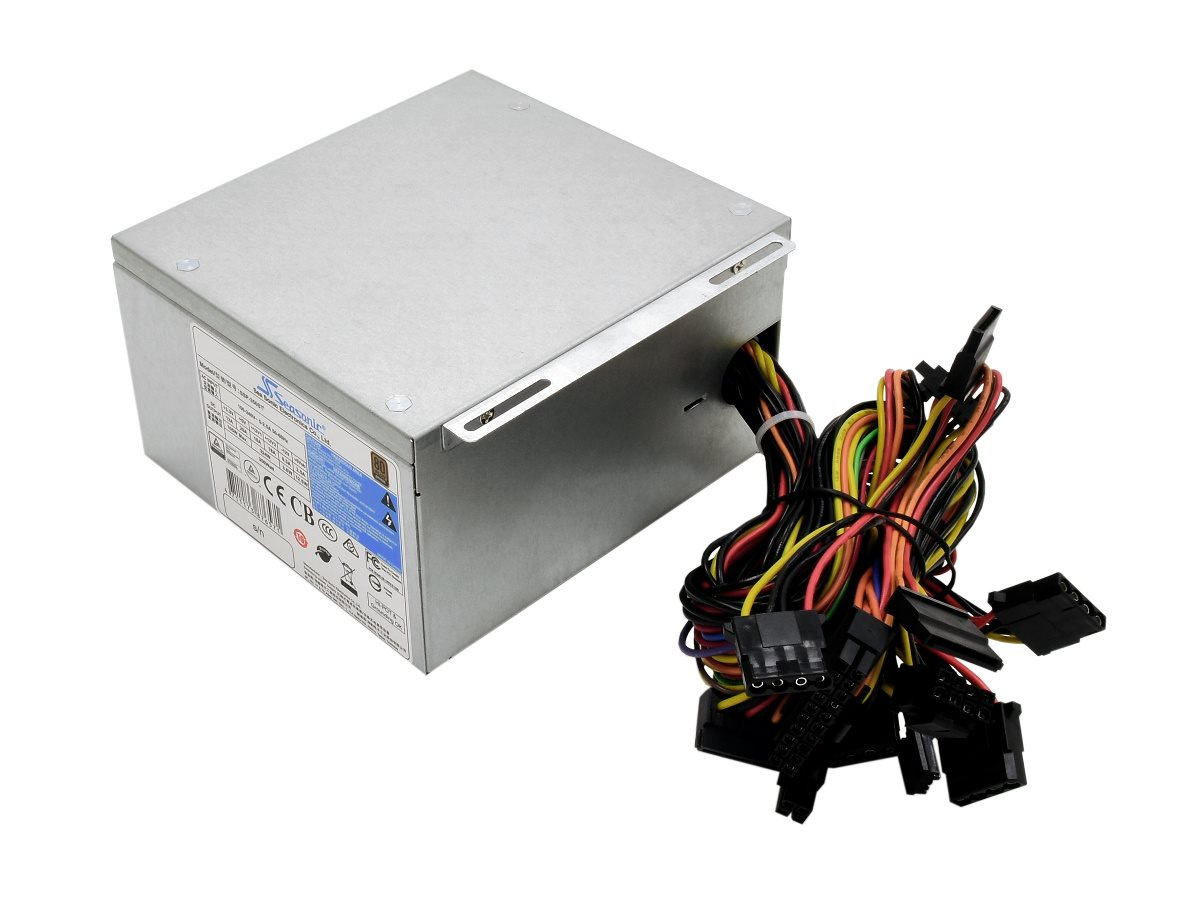

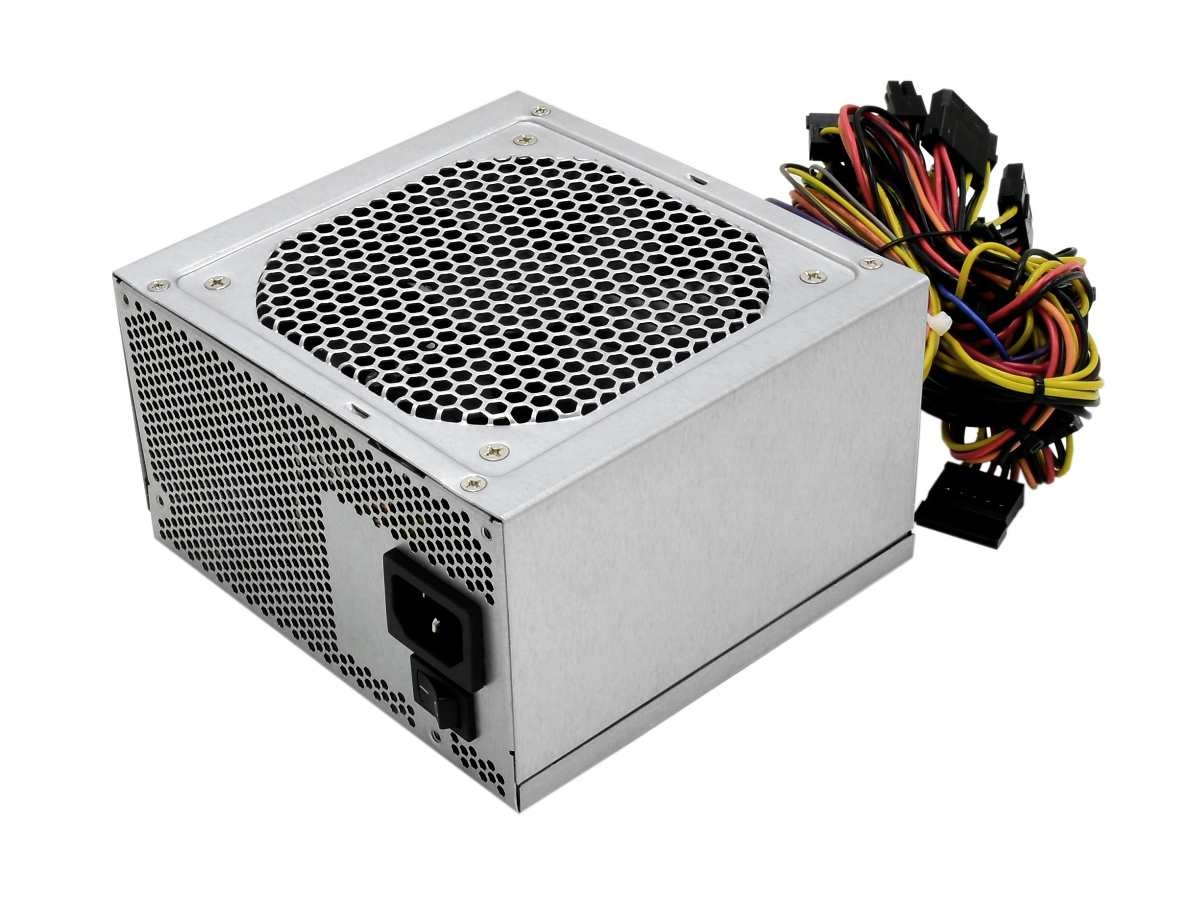

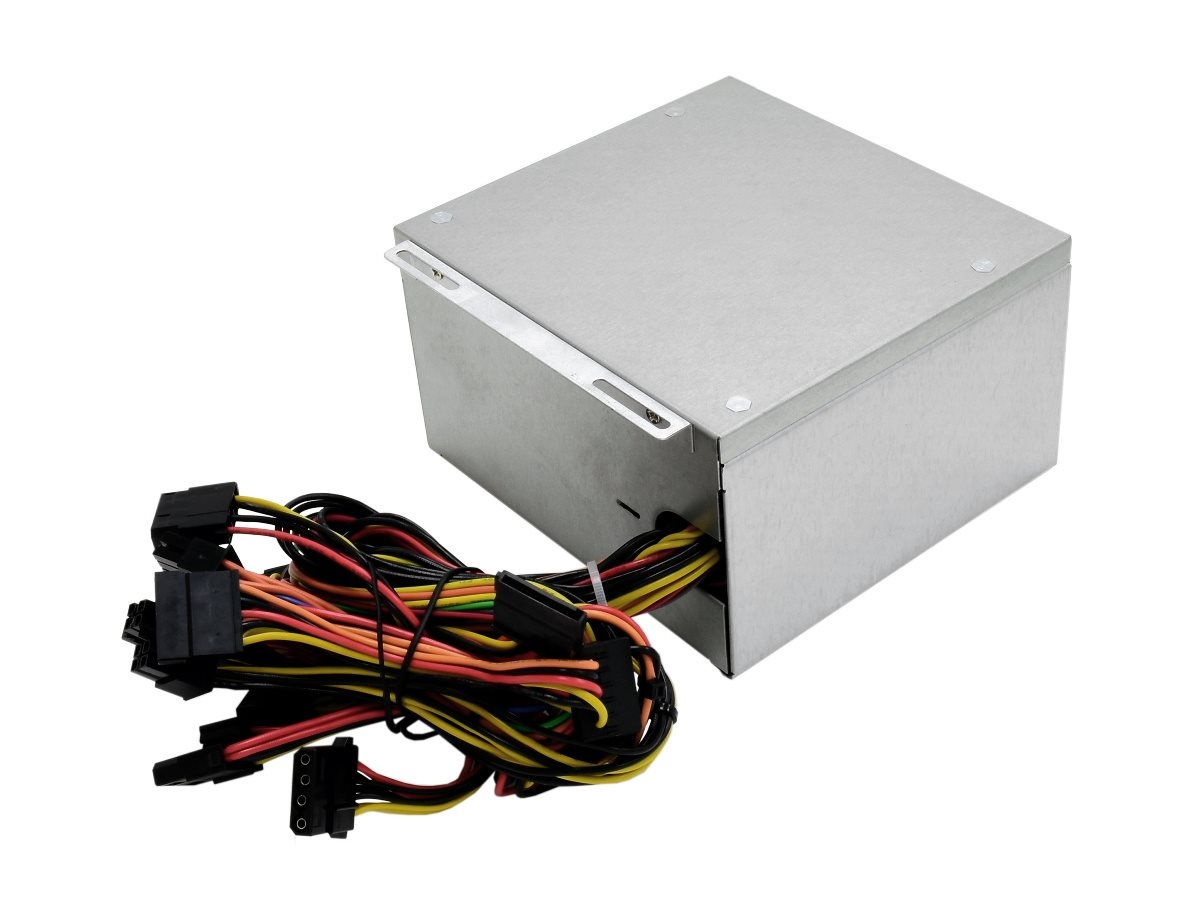

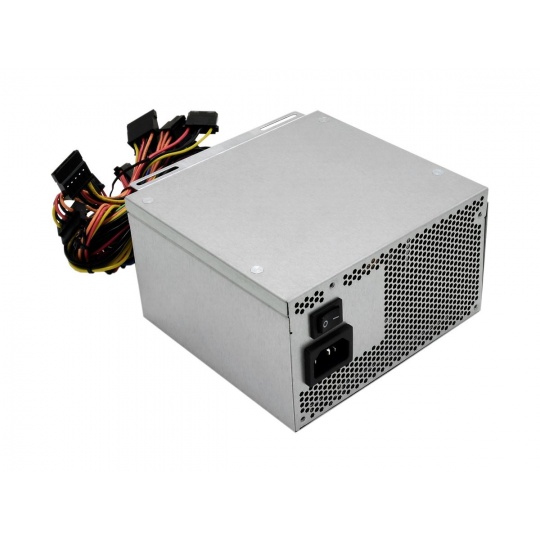

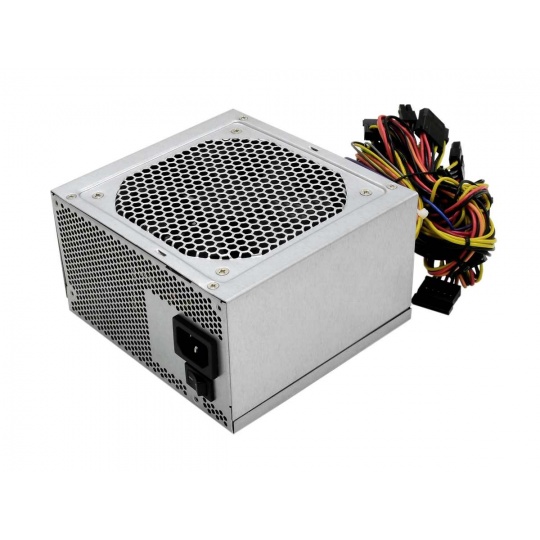

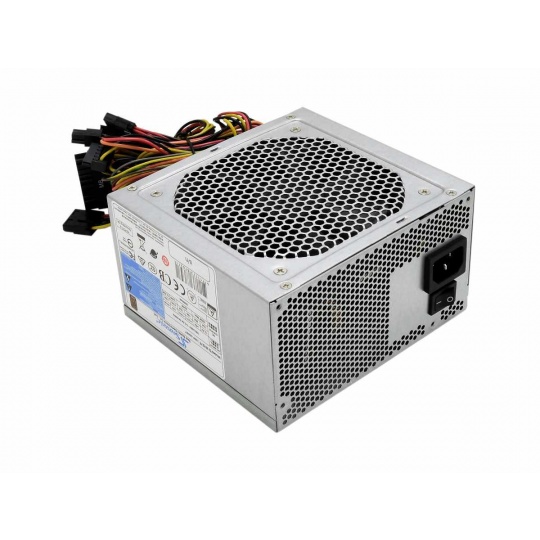

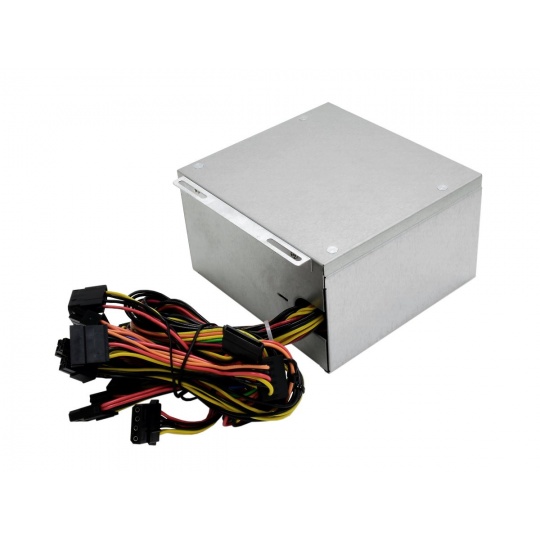

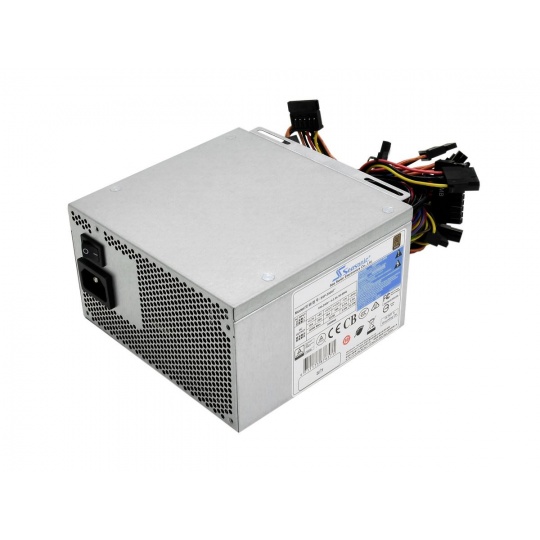

SEASONIC zdroj 600W SSP-600ET2 Bronze
Popis a parametry
SEASONIC zdroj 600W SSP-600ET2 Bronze
Seasonic SS-600ET2, Bronze
- Intel ATX 12 V v2.3 compliant
- PCIe- and SATA-ready
- High efficiency and reliability
- Super low noise fan control
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100 % HiPot test
- 100 % Burn-in, high temperature cycled on/off
- IEC 62368-1 compliant
TECHNICAL SPECIFICATIONS
| Model | SSP-600ET2 |
| Total Power | 600 W |
| +3.3 V | 24 A |
| +5 V | 24 A |
| +12 V1 | 24 A |
| +12 V2 | 24 A |
| -12 V | 0.3 A |
| +5 Vsb | 2.5 A |
| Input frequency | 50/60 Hz |
| Connectors | Main Power ATX 12V |
| Peripherals | SATA, HDD, FDD |
| Dimensions (L x W x H) | 140 x 150 x 86 mm 5.9 x 5.5 x 3.4 inch |
.
ParametryPorovnání
Formát zdroje
ATX
Konektory
PCIe 8-pin
Konektory
FDD
Konektory
Molex
Konektory
SATA 15-pin
Konektory pro základní desku
ATX 24-pin
Efektivita zdroje
80 Plus Bronze
Modulární kabeláž
Ne
Výkon zdroje (W)
600
