MSI MB Sc AM4 A520M-A PRO, AMD A520, 2xDDR4, m-ATX

Name: MSI MB Sc AM4 A520M-A PRO, AMD A520, 2xDDR4, m-ATX
Brand: MSI
SKU: 2647974
Price: 1476 CZK
Availability: InStock

-23%

Kód: 2647974

Kód dod.: A520M-A PRO

EAN: 4719072749927

Záruka: 36 Měsíc(ů)

Výrobce: MSI

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

MSI MB Sc AM4 A520M-A PRO, AMD A520, 2xDDR4, m-ATX

A520M-A PRO

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
Supports DDR4 Memory, up to 4600(OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Core Boost: With premium layout and digital power design to support more cores and provide better performance.
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
Audio Boost: Reward your ears with studio grade sound quality
Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

TECHNICAL SPECIFICATIONS

Socket	AM4
CPU Support	Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
Chipset	AMD® A520 Chipset
Memory	2x DDR4 memory slots, support up to 64GB 1 - Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC - Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE - 1DPC 1R max speed 4600 MHz - 1DPC 2R max speed 3866 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Expansion Slot	1x PCIe x16 slot 1x PCIe 3.0 x1 slots
Onboard Graphics	1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1 Maximum shared memory of 16 GB
Storage	AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) - Supports PCIe 3.0 - Supports SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO	Realtek® ALC892 Codec 7.1-Channel High Definition Audio
LAN	1x Realtek® RTL8111H Gigabit LAN controller
Internal Connectors	1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1xTPM module connector 1x Clear CMOS jumper

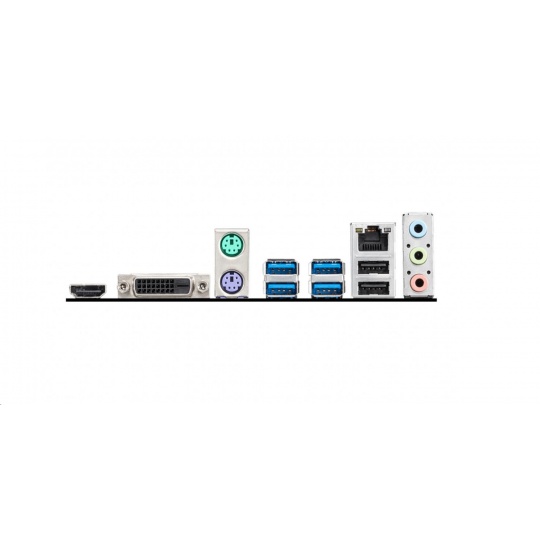

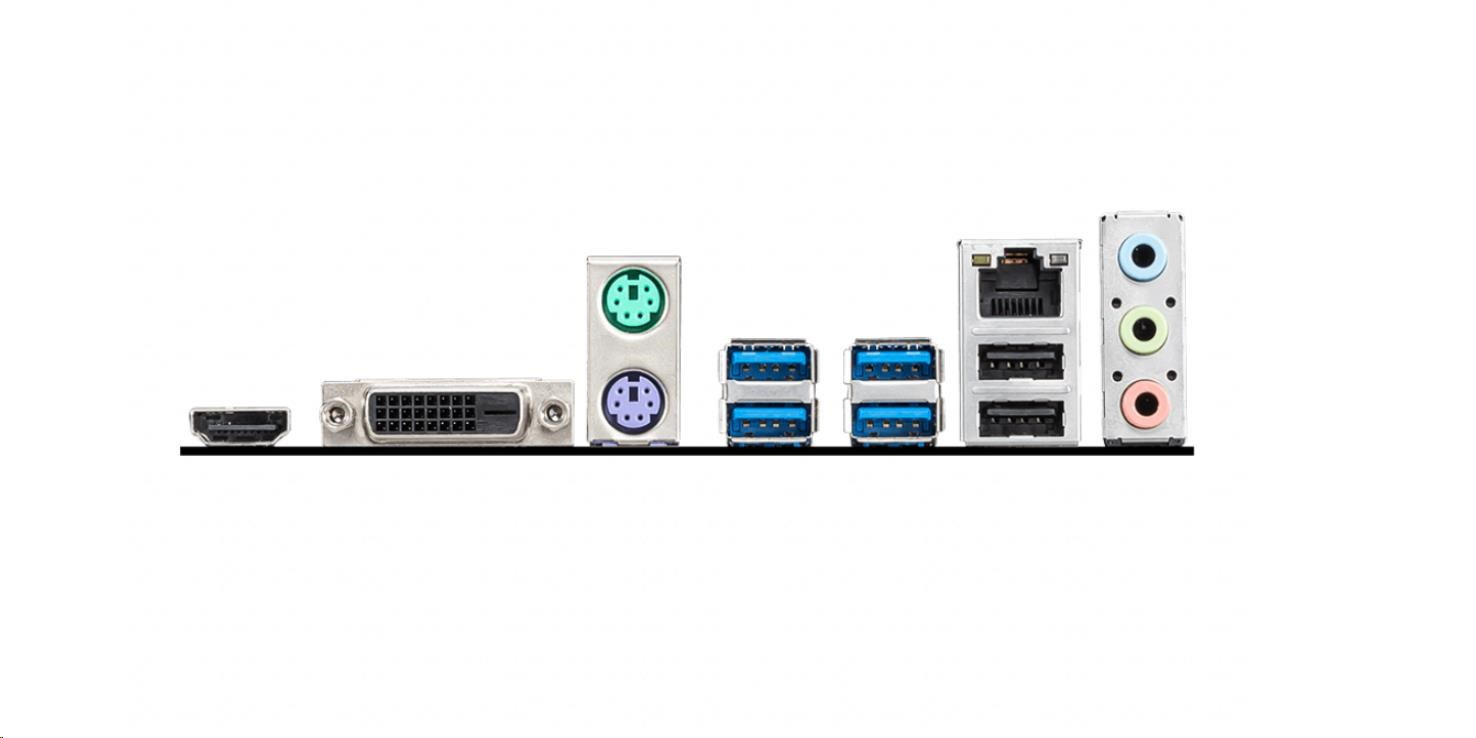

Back Panel Ports	LAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors
Dimensions	M-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Mounting	8 mounting holes
Box Content	A520M-A Pro Quick Installation Guide MSI Case Badge 2x SATA Cables Product Registration Card I/O Shielding Driver DVD
Form Factor	m-ATX
Operating System	Support for Windows® 10 64-bit

ParametryPorovnání

Technologie paměti RAM

DDR4

Socket (patice)

Socket AM4

Chipset

AMD A520

PCI Express x16

Podpora RAID

COM port

LPT port

Formát základní desky

micro ATX

3.5mm Jack

Ano

Bezdrátové připojení

bez

Pro procesory

AMD

Počet paměťových slotů

DisplayPort

TPM

Ano

USB 2

USB 3

PCI

M.2 slot

SATA 3

VGA

DVI

HDMI

Led Header

PCI Express x1

USB C

LAN

1Gbit/s
