MANHATTAN Převodník z VGA a USB na HDMI
MANHATTAN Převodník z VGA a USB na HDMI
Converts analog PC-based audio/video signals into digital HDMI.

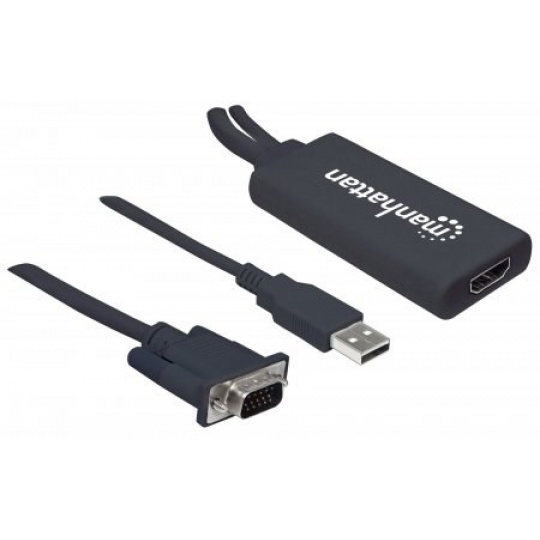

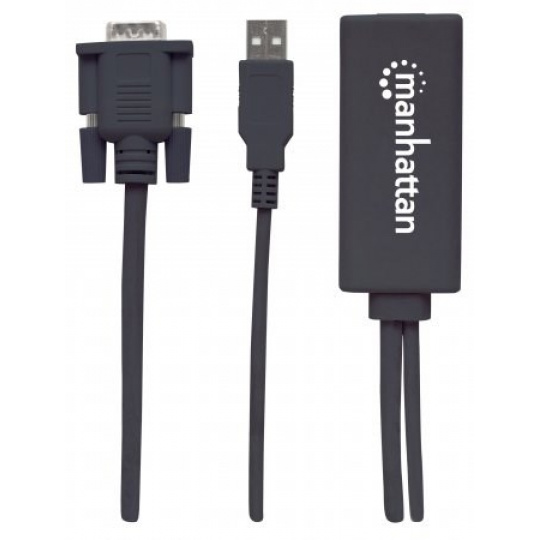

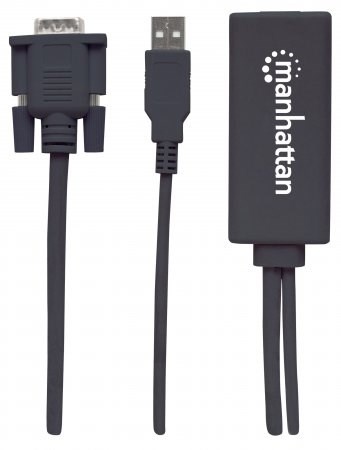

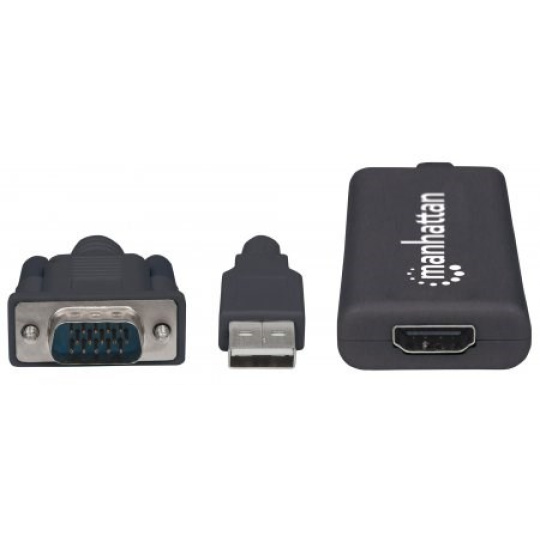

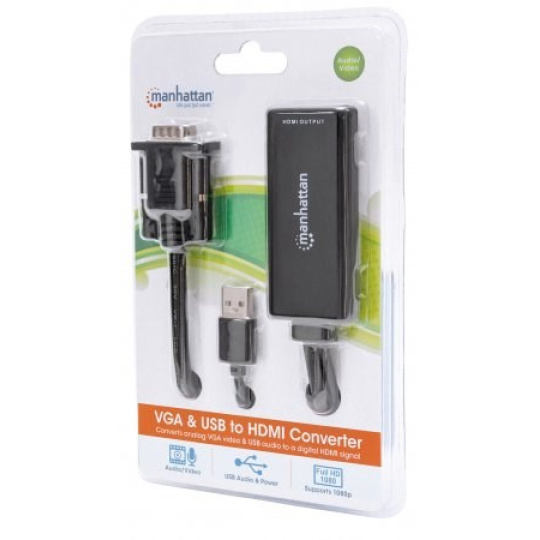

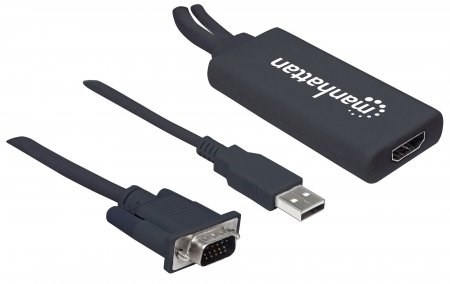

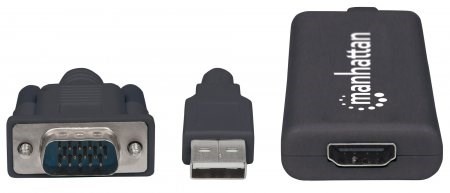

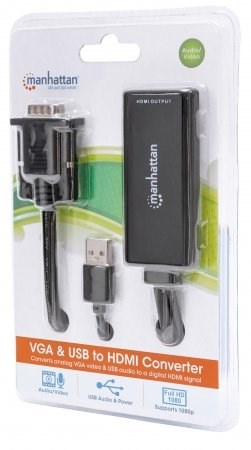

The Manhattan VGA and USB to HDMI Converter translates analog PC audio/video signals to HDMI format for compatible projectors, flat-panel HD displays, televisions and more. Advanced built-in circuitry lets you easily enjoy PC-based media on high-definition displays or TVs and maintains simultaneous A/V reception at the source PC. High bandwidth capability supports video resolutions up to 1920 x 1080 and 1080p@60Hz, serving beautifully for training, retail and trade-show purposes. Quick Plug and Play installation and Windows and Mac compatibility means the Manhattan VGA and USB to HDMI Converter makes it easy to deliver digital content stored on any desktop and notebook computers.
Features:
Easily converts analog VGA video and USB audio to a digital HDMI signal
Ideal for connecting Mac, PCs and Laptops to high-definition monitors, HDTVs, projectors and more
Supports VGA and HDMI video resolutions up to 1920x1080, 1080p@60Hz, 24-bit color depth and video amplifier bandwidth up to 1.65 Gbps / 165 MHz
Provides high quality, digital USB audio; powered with one connection
Compact and portable design fits easily in laptop bag for offsite presentations, business travelers and more
Works great in combination with Manhattan High Speed HDMI Cable with Ethernet (323215)
Plug and play; Windows and Mac compatible; simple to install
Three-Year Warranty
Specifications:
Standards and Certifications
HDMI 1.3
CE
FCC
HDCP
General
Supports HDCP pass-through
Power: 5 VDC / 1 A
VGA video input formats: VGA, XGA, SVGA, SXGA, UGA
Connections
Input: VGA / HD15 male (video)
Input: USB Type-A male (audio/power)
Output: HDMI female (video/audio)
Signal Input/Output
Input video signal: 0.5 - 1.0 V p-p
Input DDC signal: 5 V p-p (TTL)
Output video: HDMI 1.3, HDCP 1.3
Frequency: 1.65 Gbps / 165 MHz
Video Resolutions
VGA: 640 x 480, 800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 960, 1280 x 1024, 1920 x 1200, 1920 x 1080
DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p@60Hz
Physical
LED indicators: power and port connection
VGA cable, 29 cm (1 ft.)
5VDC / 1A USB power cable, 1 m (3 ft.)
Weight: 102 g (3.6 oz.)
Housing: plastic
Operating Environment
Operation Temperature: 0 - 40°C)
Storage Temperature: -20 - 60°C)
Humidity (noncondensing): 0 - 96%
Package Contents
VGA and USB to HDMI Converter
Quick Instruction Guide
