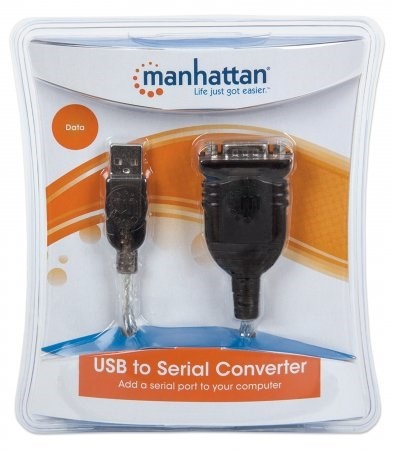

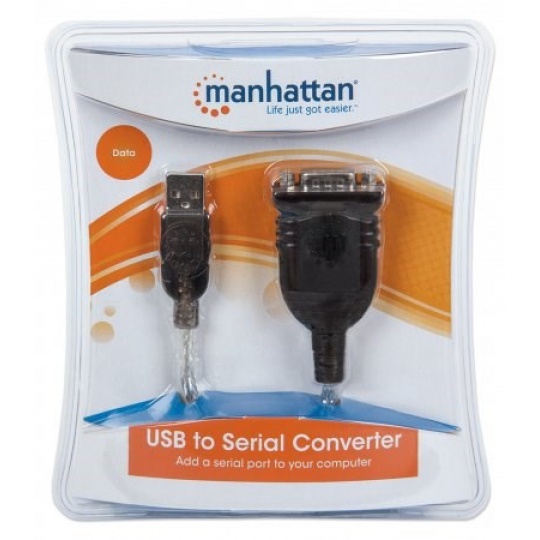

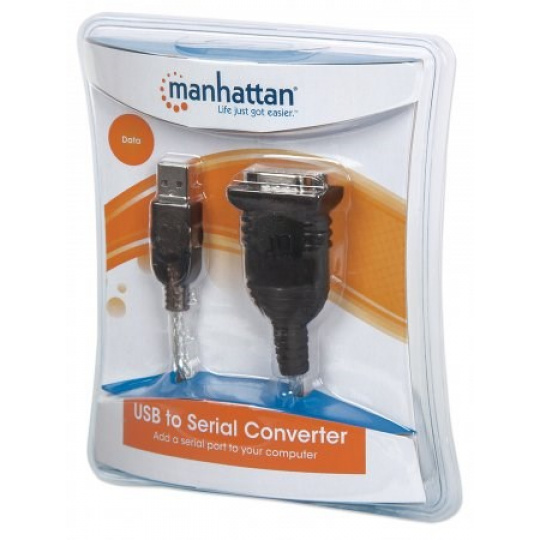

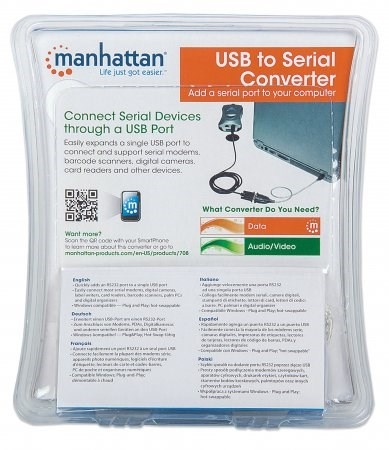

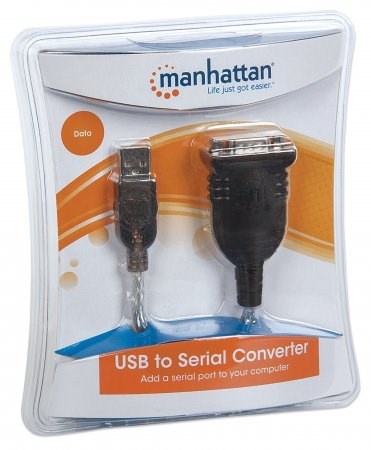

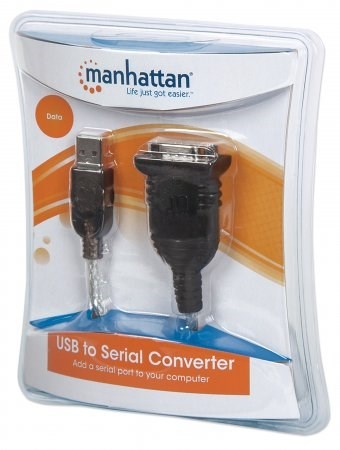

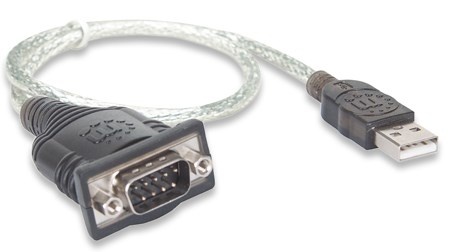

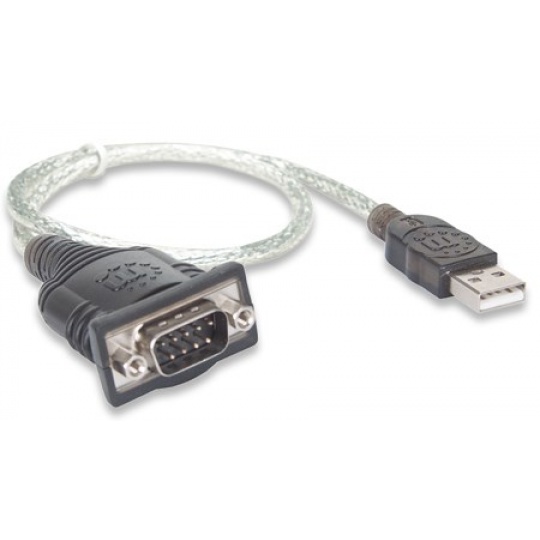

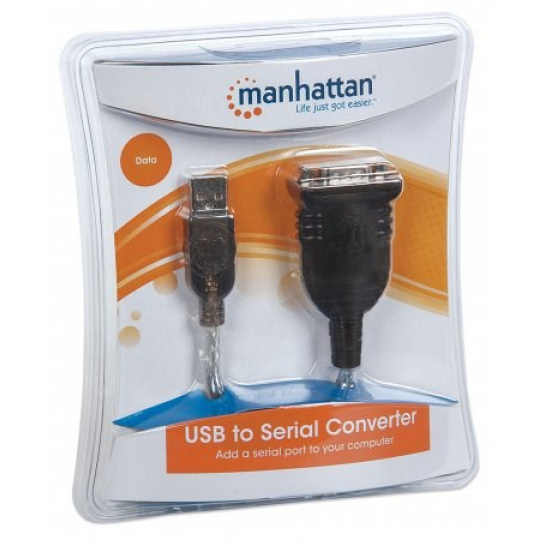

MANHATTAN převodník z USB na sériový port (USB AM / DB9M, RS232), blistr
MANHATTAN převodník z USB na sériový port (USB AM / DB9M, RS232), blistr

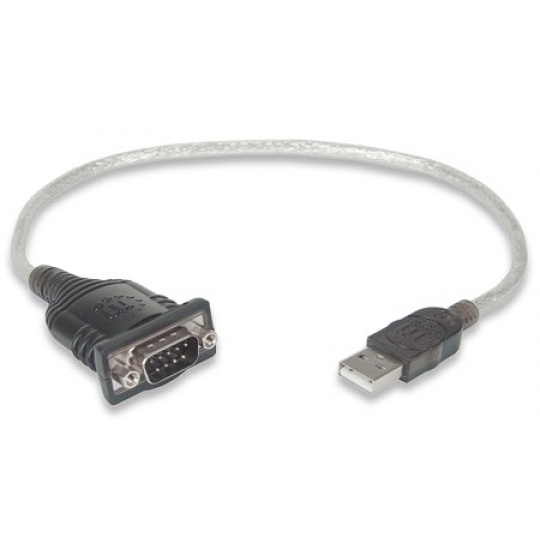

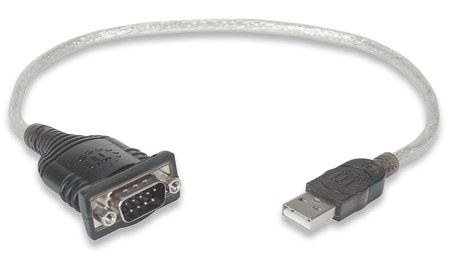

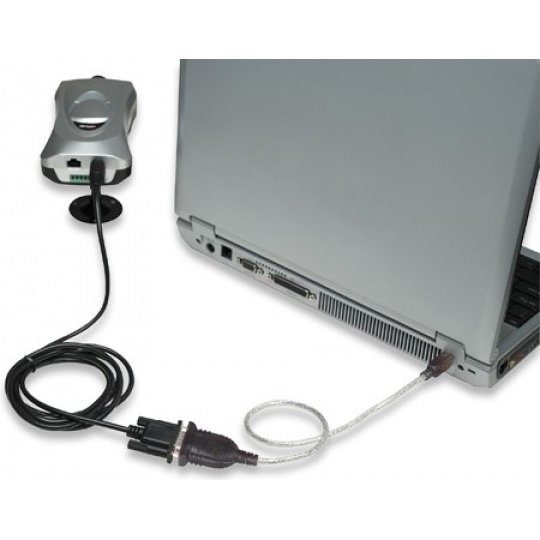

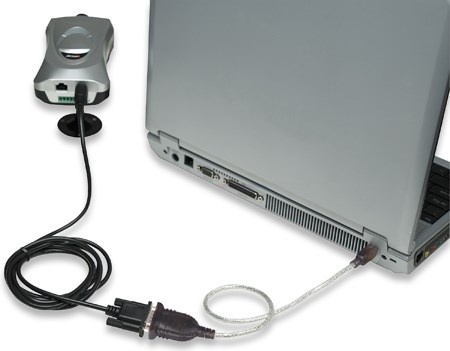

Easily connect serial devices through a USB port.
Most modern computers and laptops don't have RS232 (DB9) ports, making the use of legacy peripherals and high-tech devices which connect with COM ports almost impossible. The Manhattan USB to Serial Converter — with its serial RS232 (DB9) port and Prolific PL-2303RA chipset — easily expands a single USB port to connect and support serial modems, barcode scanners, digital cameras, card readers, Ham/Amateur Radios, GPS, CNC machines, telescopes, embroidery machines, fuel injection controllers, PDUs, network switches and other devices.
Quality Construction and Easy Installation
Gold-plated contacts and rugged construction combine to offer a reliable connection between the computer and serial peripherals for consistent, trouble-free performance. Windows compatibility with plug-and-play installation and hot-swappability help provide seamless use without inconvenient and frustrating device conflicts.
Features:
Quickly converts a USB port to a Serial/RS232/COM/DB9 port
The customizable and compatible Prolific PL-2303RA chipset makes it the ideal solution for many OSs and platforms
Easily connect most DB9/serial modems, digital cameras, label writers, barcode scanners, palm PCs, GPS, telescopes, CNC machines, embroidery machines, automotive control systems, digital organizers and much more
Install as a standard COM/RS-232 port to provide serial connectivity for legacy and high-tech devices
Chipsets PL-2303HXD and FTDI FT232RL configurations are also available at www.ManhattanProducts.com
Windows compatible; plug and play; hot-swappable
Three-Year Warranty
Specifications:
Standards and Certifications
CE
FCC
USB 1.0
USB 1.1
RoHS
WEEE
Connections
USB port; type-A male
Serial/COM/RS232/DB9 port; 9-pin male
General
Transfer rate: up to 115 kbps
Bus powered
Overcurrent protection
Prolific PL-2303RA chipset
Physical
24 AWG cable gauge
Cable length: 45 cm (18 in.)
Weight: 165 g (5.8 oz.)
System Requirements
Windows XP/Vista/7/8/8.1/10 or Linux or Mac 9.x/10.x or above
Package Contents
USB to Serial Converter
Instructions and driver CD
