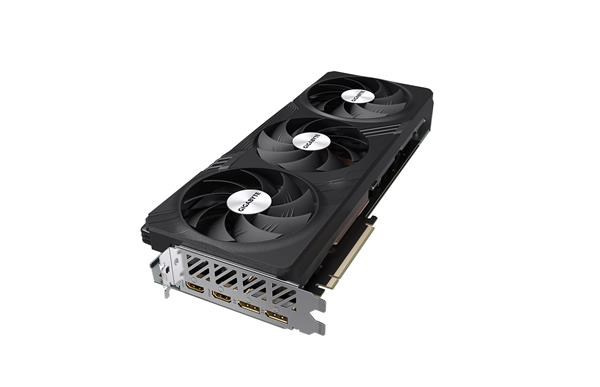

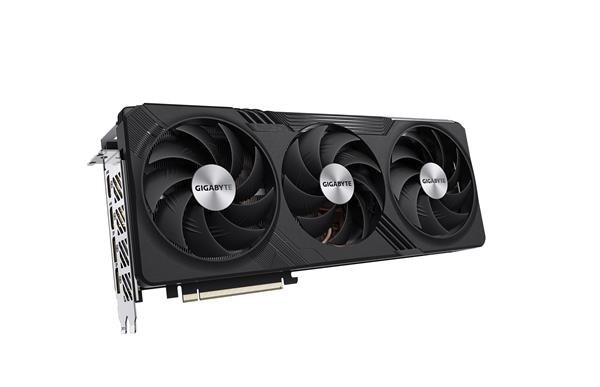

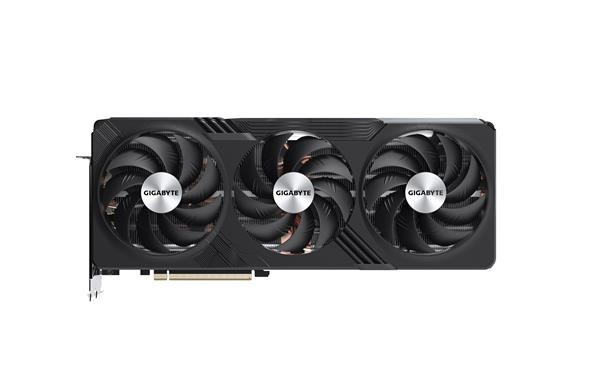

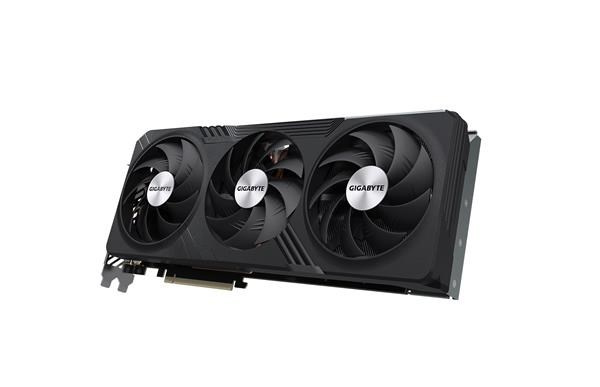

Radeon RX 7900 XT GAMING OC 20G

• Powered by GeForce AMD Radeon™ RX 7900 XT
• Integrated with 20GB GDDR6 320-bit memory interface WINDFORCE cooling system
• RGB Fusion
• Dual BIOS

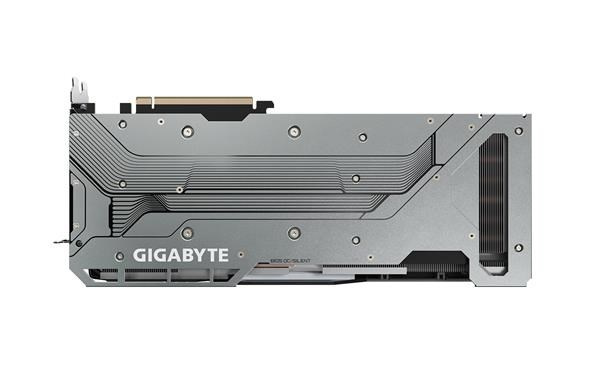

• Protection metal back plate
• Anti-sag bracket

Core Clock

• Boost Clock : up to TBD MHz (Reference card: 2395 MHz)
• Game Clock : up to TBD MHz (Reference card: 2000 MHz)

Graphics Processing

Radeon™ RX 7900 XT

Core Clock

Boost Clock : up to TBD MHz (Reference card: 2395 MHz)
Game Clock : up to TBD MHz (Reference card: 2000 MHz)

Stream Processor

5376

Memory Clock

20 Gbps

Memory Size

20 GB

Memory Type

GDDR6

Memory Bus

320 bit

Card Bus

PCI-E 4.0

Digital max resolution

7680x4320

Multi-view

4

Recommended PSU

800W

Card size

L=331 W=138 H=50 mm

Power Connectors

8 Pin*2

PCB Form

ATX

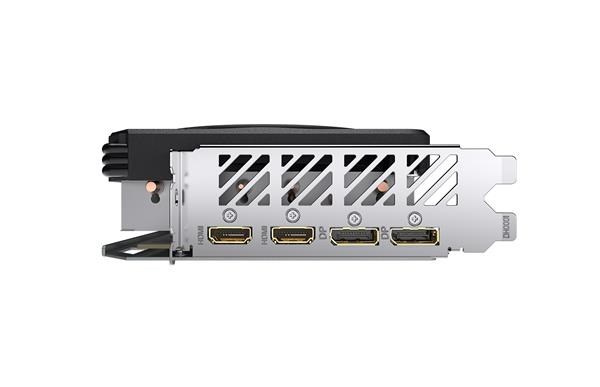

Output

DisplayPort 2.1*2, HDMI 2.1*2

DirectX

12 Ultimate

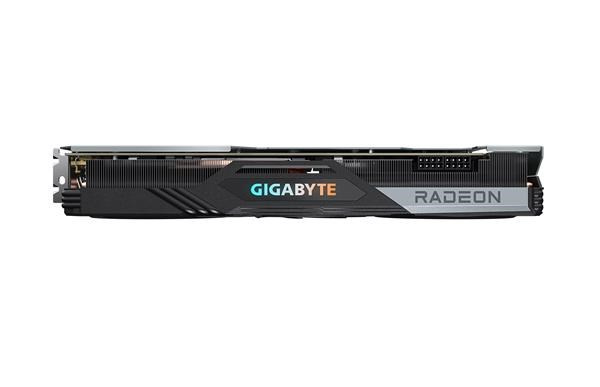

RGB Light

Side

OpenGL

4.6

Accessories

1. Quick guide
2. Anti-sag bracket
3. Anti-sag bracket installation guide
