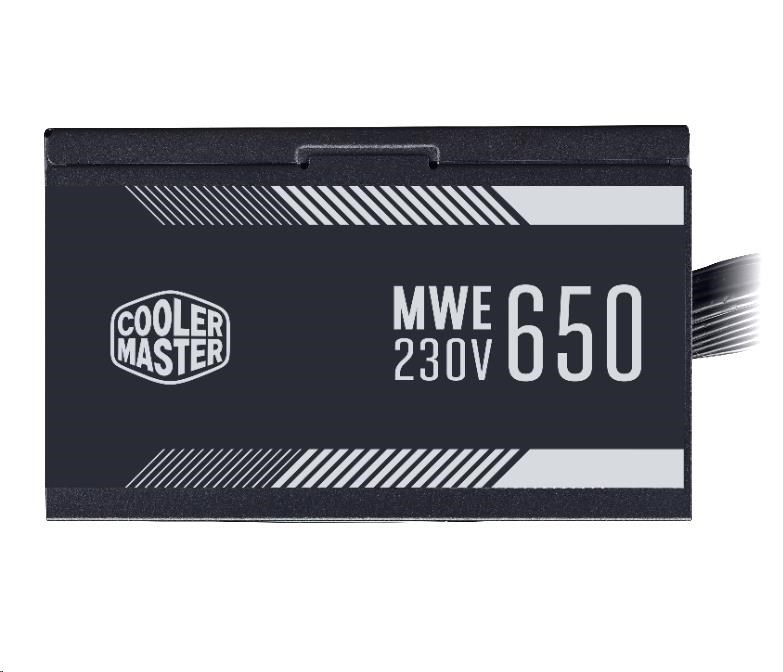

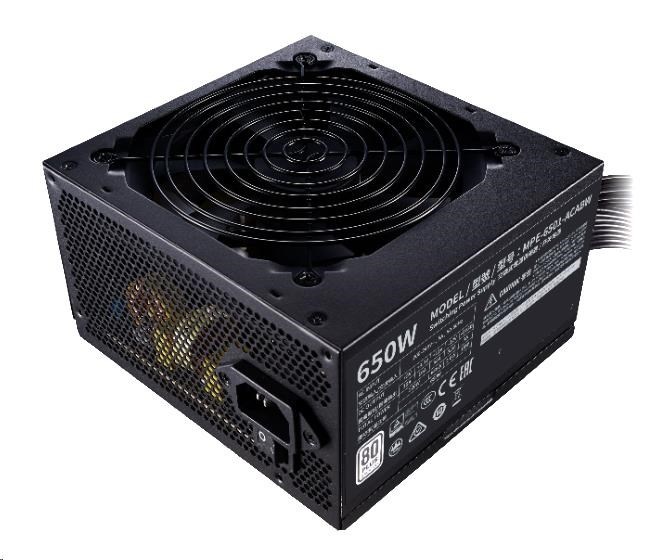

Cooler Master zdroj MWE White 650W V2, 120mm, 80+
Popis a parametry
Cooler Master zdroj MWE White 650W V2, 120mm, 80+

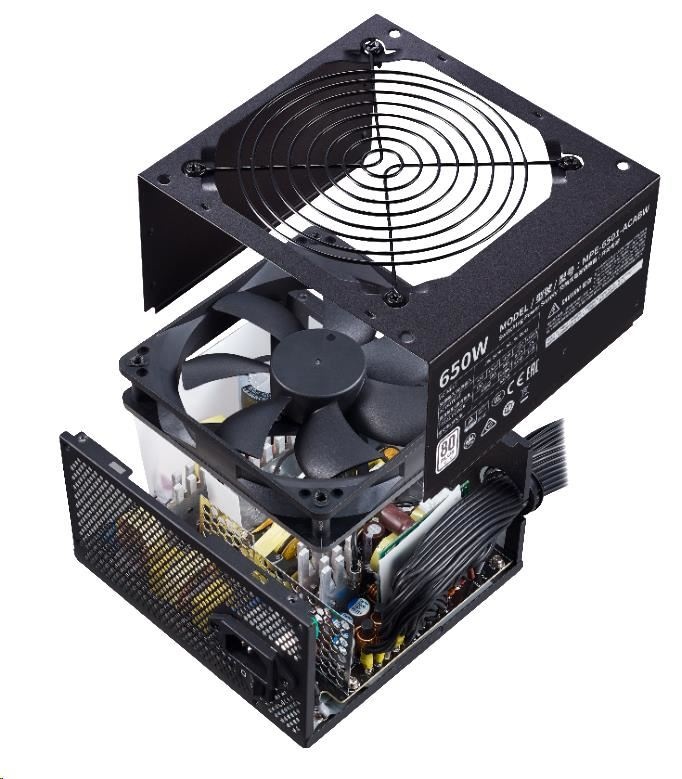

The MWE White offers 80 Plus Standard certification, guaranteeing an average efficiency of 85% at typical load. The DC-to-DC + LLC circuit design allows the unit to convert power from the single +12V rail reliably, efficiently, and safely for a better overall user experience. The thermally sensitive HDB fan cools based on temperature adjusting constantly as the system’s needs change. Not only does this waste less power but it also creates a quieter overall user experience by not running the fan at maximum noise level when not needed. For a great entry level computing experience, choose the MWE White.
- Single +12V Rail:All power comes from a single +12V source, ensuring consistent output through all connected cables.

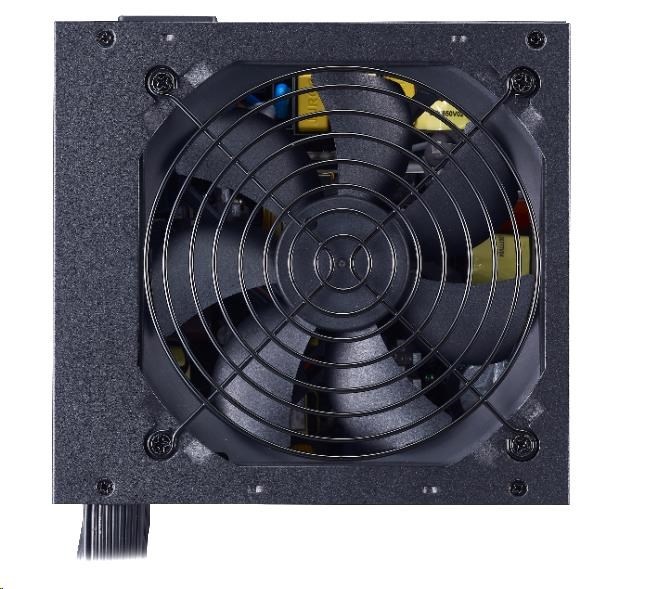

- 120mm HDB Fan:The 120mm HDB fan employs responsive fanspeed control, limiting noise to specific cooling requirements during use.
- DC-to-DC Technology:The DC-to-DC + LLC circuit design offers reliable, stable output to all connected components.
- Silent Mode:The fan will not spin under lower loads or in standby mode, ensuring a quiet user experience during casual operation.
- Flat Black Cables:The flat cables take up less space and are easier to manipulate within the chassis.
- 3 Year Warranty:This unit comes with a standard limited manufacturing warranty of 3 years from the date of purchase.

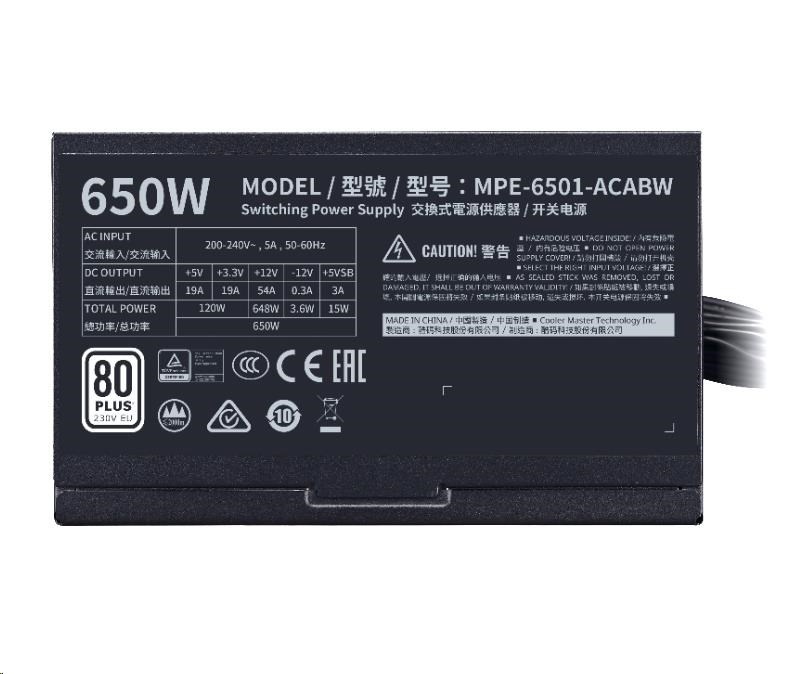

Product Name | MWE 650 White 230V V2 | |
Item Code | MPE-6501-ACABW | |
ATX Version | Intel ATX 12V V2.52 | |
PFC | Active PFC | |
Imput Voltage | 200-240V | |
Imput Current | 5A | |
Imput Frequency | 50-60Hz | |
Dimensions (L x W x H) | 140 x 150 x 86mm | |
Fan Size | 120 | |
Fan Bearing | HBD | |
Fan Speed | 2400 RPM | |
Noice @ 20% | 16.54dB-A | |
Noice @ 50% | 26.5dB-A | |
Noice @ 100% | 42.5dB-A | |
Efficiency | 85% Typically | |
80 PLUS Rating | 80 PLUS Standard 230V EU | |
ErP 2014 Lot 3 | Yes | |
Operating Temperature | 40°C | |
Power Good Signal | 100 - 500ms | |
Hold Up Time | >14ms at 100% full load@230Vac | |
MTBF | >100,000 hours | |
Protections | OVP / OPP / SCP / UVP / OTP | |
Regulatory | CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB | |
Connectors | ATX 24 Pin | x1 |
EPS 4+4 Pin | x1 | |
EPS 8 Pin | x1 | |
SATA | x6 | |
Peripheral 4 Pin | x3 | |
PCI-e 6+2 Pin | x4 |
.
ParametryPorovnání
Formát zdroje
ATX
Konektory
SATA 15-pin
Konektory
Molex
Konektory
PCIe 8-pin
Konektory
FDD
Konektory
8pin CPU 2x
Konektory
PCIe 6-pin
Konektory pro základní desku
ATX 24-pin
Efektivita zdroje
80 Plus
Modulární kabeláž
Ne
Výkon zdroje (W)
650
