Club3D adaptér aktivní HDMI na DisplayPort 4K60Hz, M/F

Name: Club3D adaptér aktivní HDMI na DisplayPort 4K60Hz, M/F
Brand: Club 3D
SKU: 795131
Price: 1091 CZK
Availability: InStock

-13%

Kód: 795131

Kód dod.: CAC-1331

EAN: 8719214471484

Záruka: 24 Měsíc(ů)

Výrobce: Club 3D

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

Club3D adaptér aktivní HDMI na DisplayPort 4K60Hz, M/F

HDMI™ to DisplayPort™ 4K60Hz M/F Active

The Club 3D CAC-1331 is an HDMI™ to DisplayPort™ 1.2 Active Adapter which allows you to transmit a HDMI™ signal into a DisplayPort™signal. This product supports DP1.2 specification with resolution up to 4096 x 2160@60Hz. Besides, it is equipped with USB Type A port to supply power in case there isn’t enough power from the HDMI™ source. This Adapter is Uni-Directional.

Please use one of our (Extension)HDMI™ and/or DisplayPort™ cables to connect from the adapter to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at support@club-3d.com and it will be our pleasure to assist you.

TECHNICAL SPECIFICATIONS

Product Name	HDMI™ to DisplayPort™ 1.2 4K60Hz M/F Active Adapter
Product Series	Adapter
Itemcode	CAC-1331
EAN code	8719214471484
UPC code	841615101665
Features	HDMI™ 2.0 support: - HDCP1.4/2.2 - 8/10/12-bit Deep Color - Status and Control Data Channel (SCDC) DisplayPort™ 1.2 support: - DP1.2a compliant - Resolution up to 4K60Hz - Support Four Lanes with 1.62Gbps (RBR), 2.7Gbps (HBR) or 5.4Gbps (HBR2) Data Rate - Support 8/10/12-bit Deep Color - Support Hot-Plug Detect Gold plated connectors
OS Support	All
In the box	CAC-1331 - HDMI™ to DisplayPort™ 1.2 4K60Hz M/F Active adapter
Input	1x HDMI™ (Male) 1x USB Type A for power
Output	DisplayPort™ 1.2 (Female)

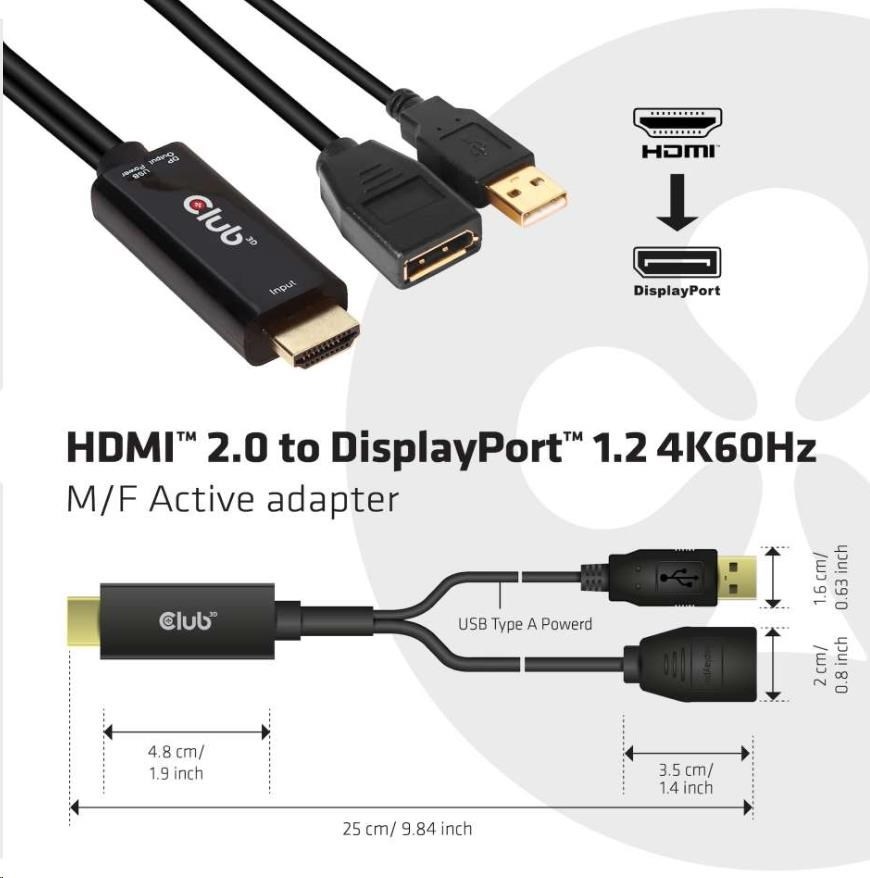

Other info	Box size 14.5 x 14.5 x 3 cm Box size: 5.7 x 5.7 x 1.2 inch Device size: 2 x 1.1 x 25 cm Device size: 0.8 x 0.4 x 9.84 inch Device Weight: 42 gr / 1.5 oz: Total Cable length 25 cm / 9.84 inch Connector dimensions : HDMI™ Male 4.8 x 1.1 x 2.1 cm / 1.89 x 0.43 x 0.83 inch DisplayPort™ Female 2 x 3.5 x 1.1 cm / 0.79 x 1.38 x 0.43 inch USB Type A Male 3.7 x 0.7 x 1.5 cm / 1.46 x 0.28 x 0.6 inch Box Weight: 18 gr / 0.7 oz Total Weight: 60 gr / 2.2 oz Meets ROHS, FCC, and CE EMI requirements

In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.

ParametryPorovnání

Specifikace kabelu / redukce

Adaptér, Redukce

Input

HDMI

Input

USB

Output

DisplayPort
