CHIEFTEC skříň Miditower CW-01B-OP Black, ATX, 2x USB 3.0 / 3,1 Gen 1
Popis a parametry
CHIEFTEC skříň Miditower CW-01B-OP Black, ATX, 2x USB 3.0 / 3,1 Gen 1
CW-01B-OP
- Tool-less installation of external and internal drives
- Diverse cooling options and drive bays for modern workstations
- Elegant design combining brushed aluminum and mesh features

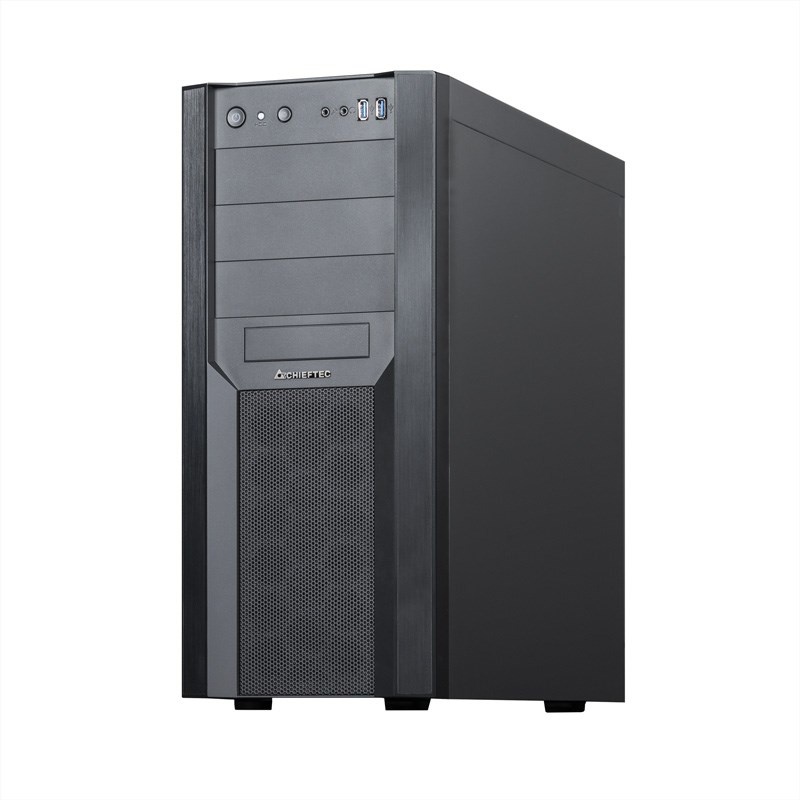

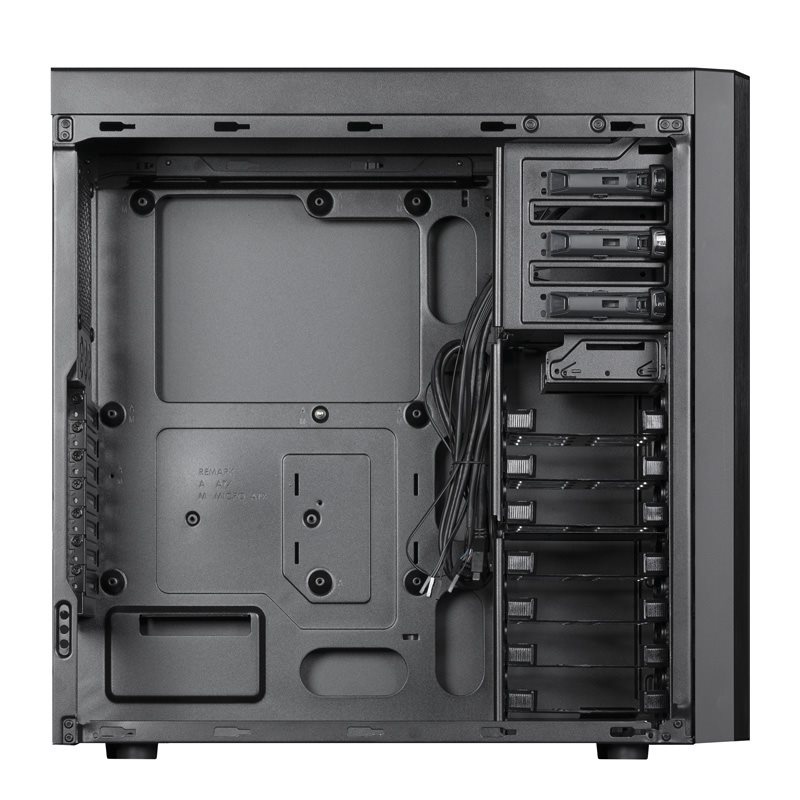

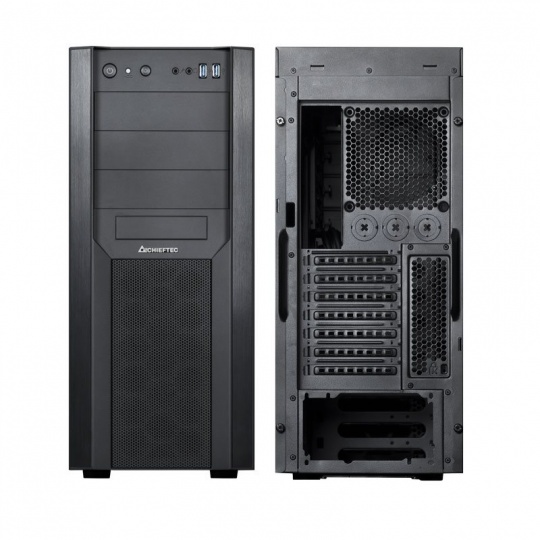

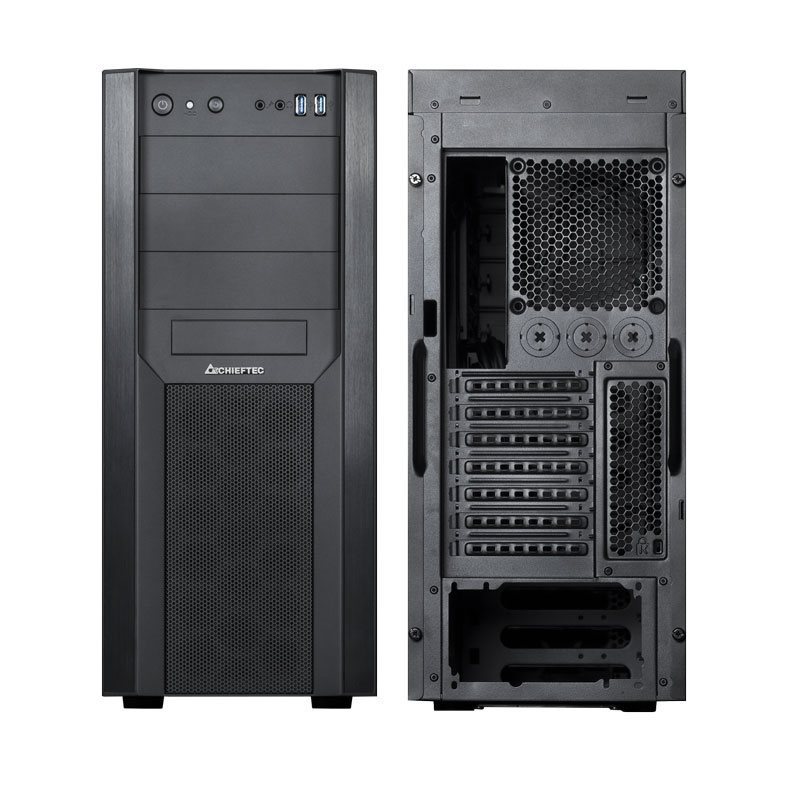

The CW-01B-OP is Chieftec’s interpretation of a high-performance workstation case, providing high functional flexibility with external and internal drives and diverse cooling options. Preinstalled dust filters guarantee you a dust-free system. Featuring a modern, yet timeless, design combining brushed aluminum and filtered mesh, the Chieftec CW-01B-OP provides great airflow for an optimal workstation performance.
- Diverse cooling options and drive bays for modern workstations
- Elegant design combining brushed aluminum and mesh features
The CW-01B-OP is Chieftec’s interpretation of a high-performance workstation case, providing high functional flexibility with external and internal drives and diverse cooling options. Preinstalled dust filters guarantee you a dust-free system. Featuring a modern, yet timeless, design combining brushed aluminum and filtered mesh, the Chieftec CW-01B-OP provides great airflow for an optimal workstation performance.
SPECIFICATIONS:
| Modell | CW-01B-OP |
| EAN code | 0753263076977 |
| Color | Black |
| Material | 0.7mm SPCC |
| Motherboard support | Mini ITX, mATX, ATX |
| Dimension (DxWxH) | 490mm x 210mm x 471mm (stand +21mm) |
| Weight (without/with package) | 6.8 kg / 7.8 kg |
| Drive bay external | 3x 5.25” and 1x 3.5” |

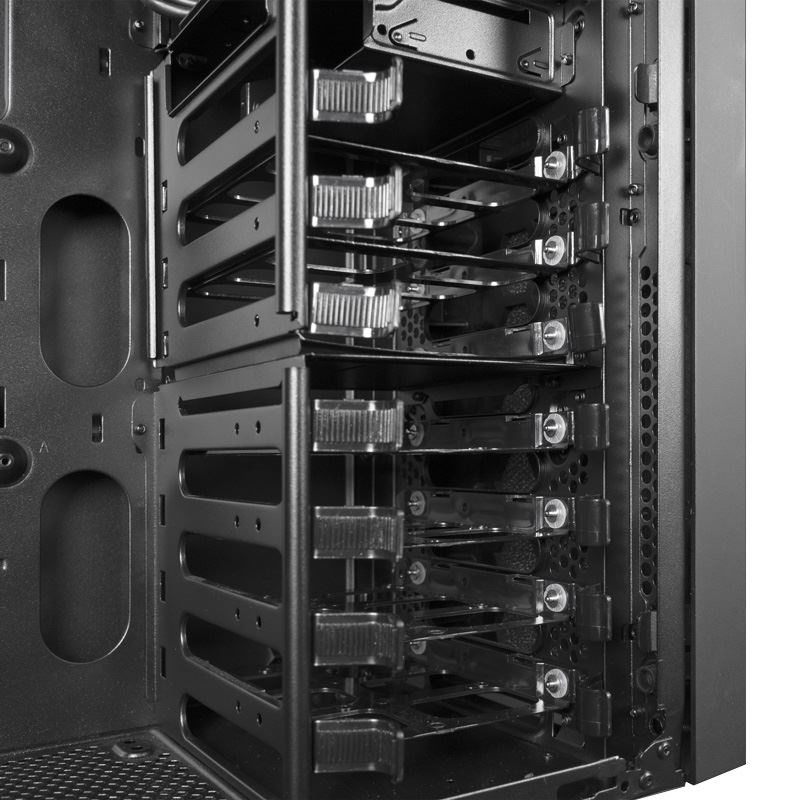

| Drive bay internal | 7x 3.5” or 7x 2.5” |
| Power supply | ATX PSU (optional) |
| Front I/O | 2x USB3.0 (USB3.1 Gen 1), Audio-out (AZALIA / HD-Audio), Mic-In |

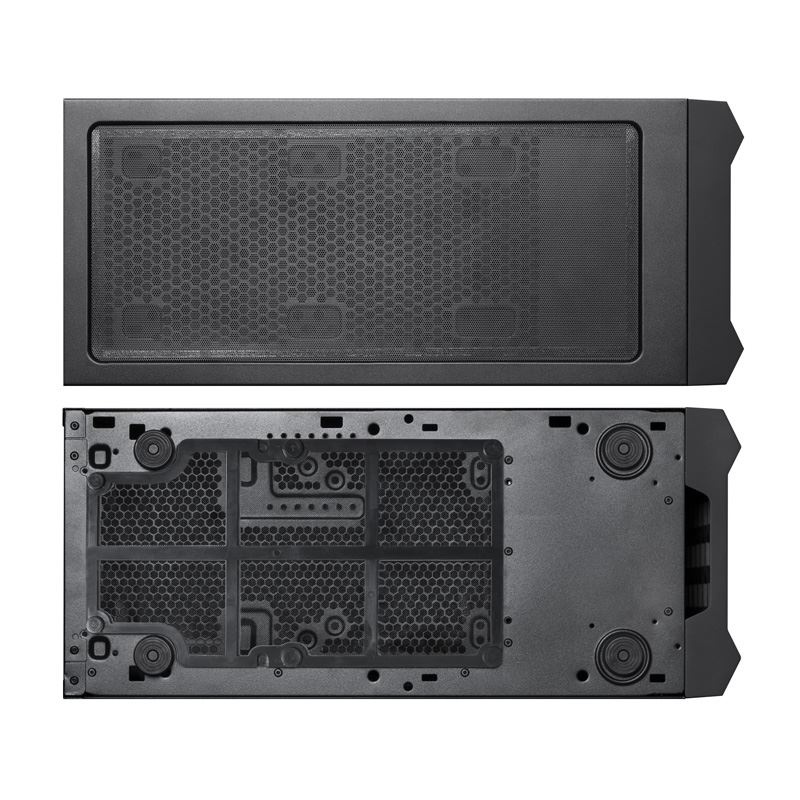

| Scope of delivery | Screw set, Tool-less installation kit, front dust filter, 2x magnetic dust filters (top & bottom) |

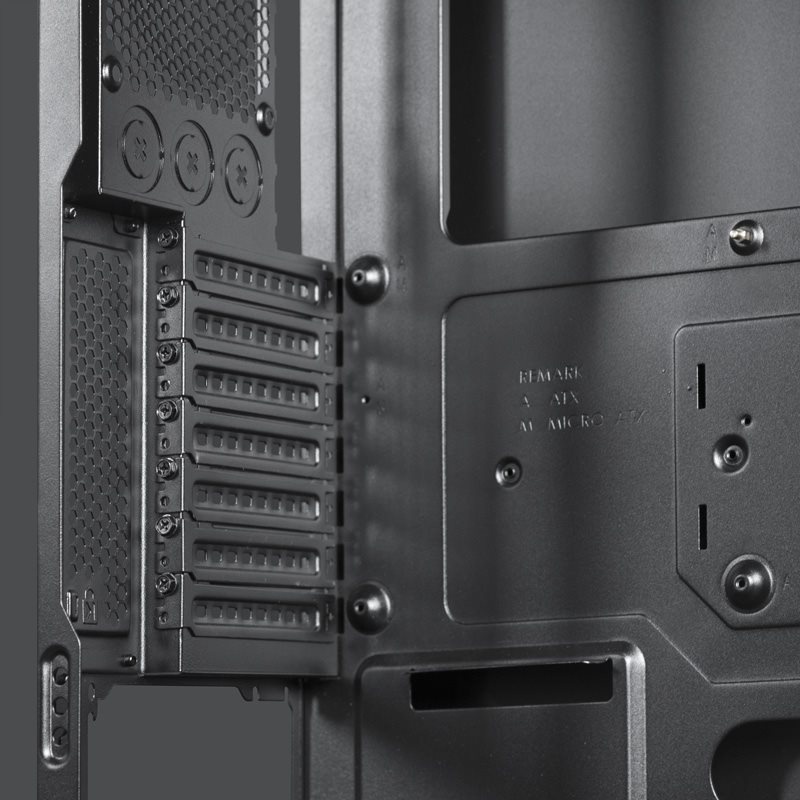

| Expansion slots | 7 |
| Cooling Compatibility | Top: 2x 120mm/140mm fans or up to 280mm radiator (use of 280mm radiator blocks first ODD drive) Front: 2x 120mm fans Back: 1x 120mm fan Bottom: 1x 120mm or 140mm fan (depending on PSU length) |
| CPU cooler height (max.) | 165mm |
| VGA card length (max.) | 270 mm (410mm if middle HDD cage removed) |
| Warranty | 24 Months |
ParametryPorovnání
Provedení skříně
Midi Tower
Barva skříně
Černá
Počet pozic 5.25"
3
Počet pozic 3.5" (HDD)
8
Počet pozic 2.5" (SSD)
7
Vybavení PC skříně
Přední Audio panel
Vybavení PC skříně
Přední USB panel
Bočnice
Plná
Podsvícení
bez podsvícení
Integrovaný zdroj
Ne
