ASUS zdroj ROG-STRIX-1000G 1000W, 80+ Gold, modular
Popis a parametry

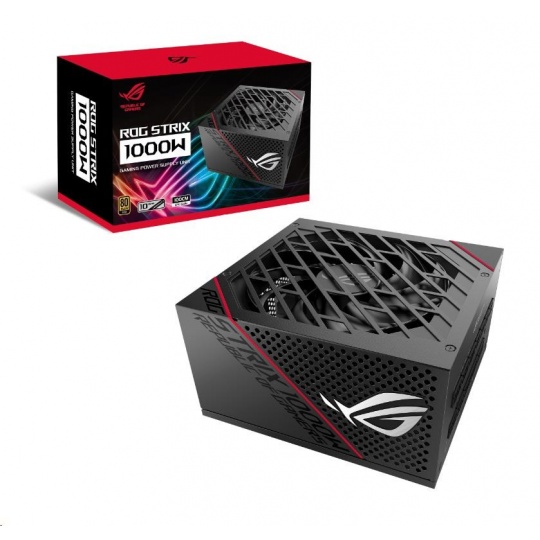

ASUS zdroj ROG-STRIX-1000G 1000W, 80+ Gold, modular
ROG-STRIX-1000G
The ROG Strix 1000W Gold PSU brings premium cooling performance to heavyweight gaming rigs with ROG Heatsinks and Axial-tech fan design. Low temps keep the ROG Strix incredibly quiet, even under full load.

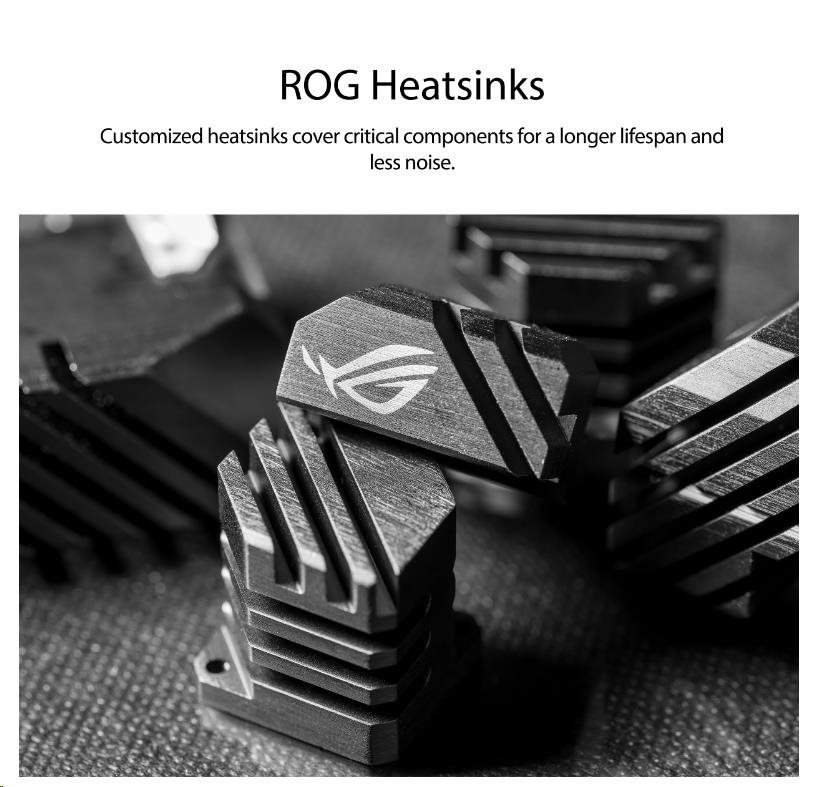

- ROG heatsinks cover critical components. Lower temps result in a longer lifespan and reduced noise.

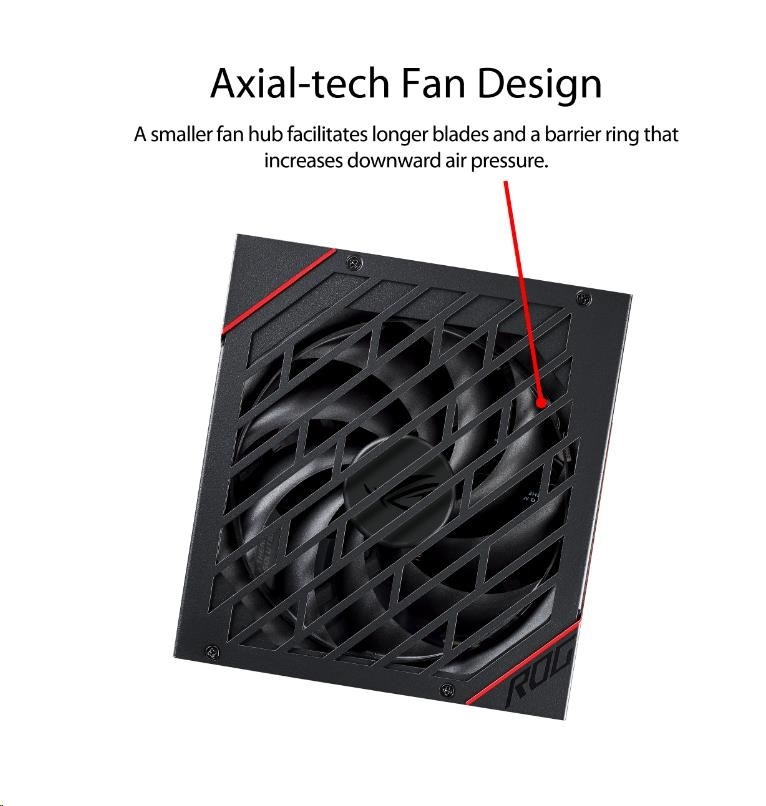

- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- 0dB Technology lets you enjoy light gaming in relative silence.

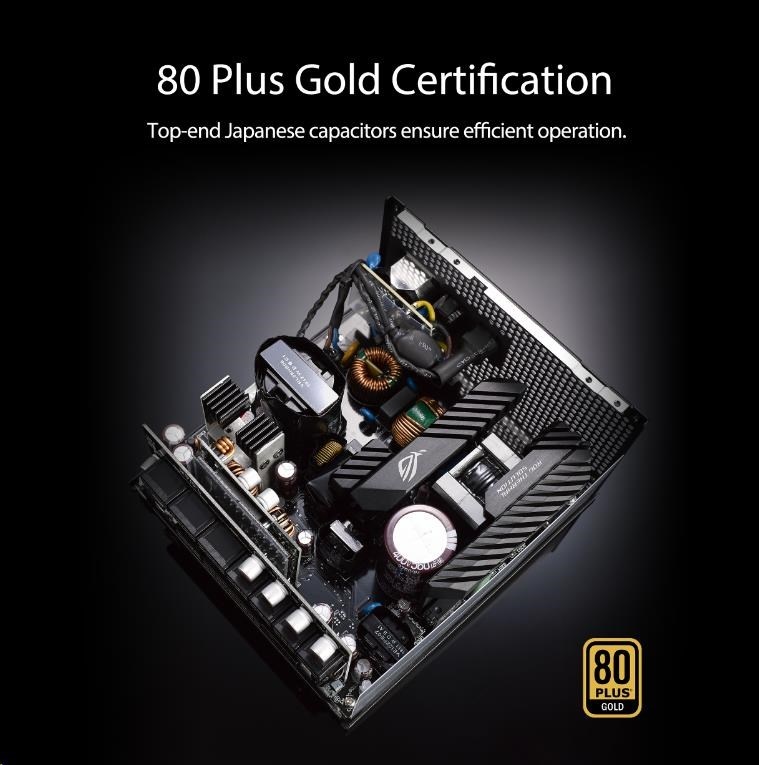

- An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.

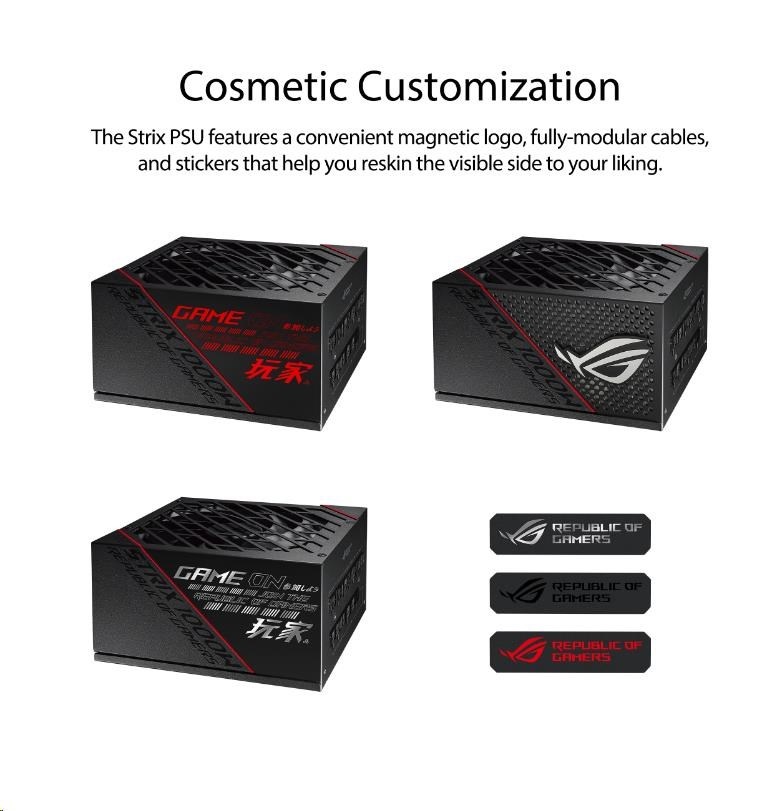

- Cosmetic customization is enabled by a magnetic logo and stickers that help you reskin the visible side to your liking.

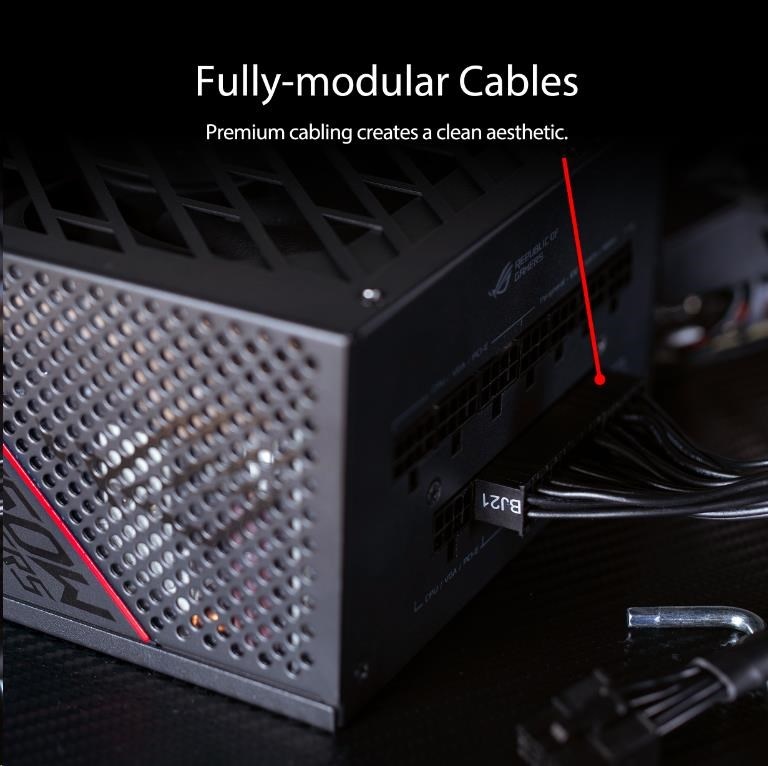

- Fully modular cables keep your rig neat and tidy.
- 10-year warranty included.
TECHNICAL SPECIFICATIONS
| Intel Specification | ATX 12V |
| Dimensions | PSU Size: 160 x 150 x 86 mm Color Box: 310 x 180 x 115 mm |
| Efficiency | 80 Plus Gold |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| Thermal Features | ROG Thermal Solution |
| Fan Size | 135mm |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 25A 25A 83A 0.3A 3A |
| Combined Load | 125W 125W 996W 3.6W 15W |
| Total Output | 1000W |
| Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 6+2-pin x 6 SATA x 8 Peripheral x 6 |
| Package Contents (Cable + Accessory) | Power Cord x 1 Motherboard Power Cable x 1 CPU Cable 1000mm x 2 PCI-E Cable x 3 SATA Cable x 2 Peripheral x 2 ROG badge x 2 ROG logo magnet x 1 ROG label x 3 *MB/ CPU/ PCI-E cables come with embedded capacitors in the middle. |
| Weight | Single PSU (kg): 1.885 kg |
.
ParametryPorovnání
Formát zdroje
ATX
Konektory
PCIe 8-pin
Konektory
SATA 15-pin
Konektory pro základní desku
ATX 24-pin
Vlastnosti zdroje
Modulární kabeláž
Efektivita zdroje
80 Plus Gold
Modulární kabeláž
Ano
Výkon zdroje (W)
1000
