ASUS MB Sc AM5 PRIME A620M-A-CSM, AMD A620, 4xDDR5, 1xHDMI, 1xDP, 1xVGA, mATX
Popis a parametry
ASUS MB Sc AM5 PRIME A620M-A-CSM, AMD A620, 4xDDR5, 1xHDMI, 1xDP, 1xVGA, mATX

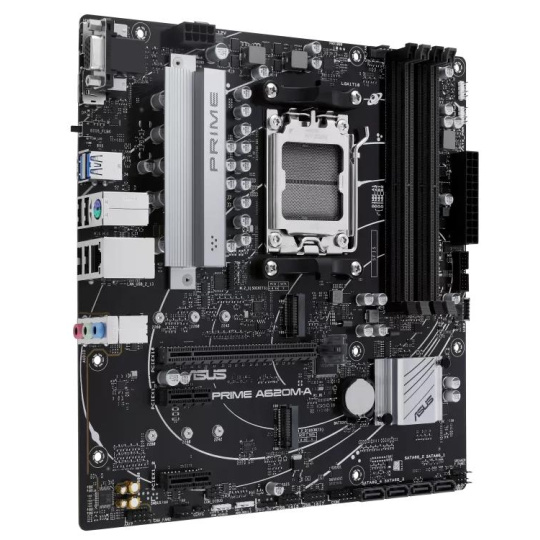

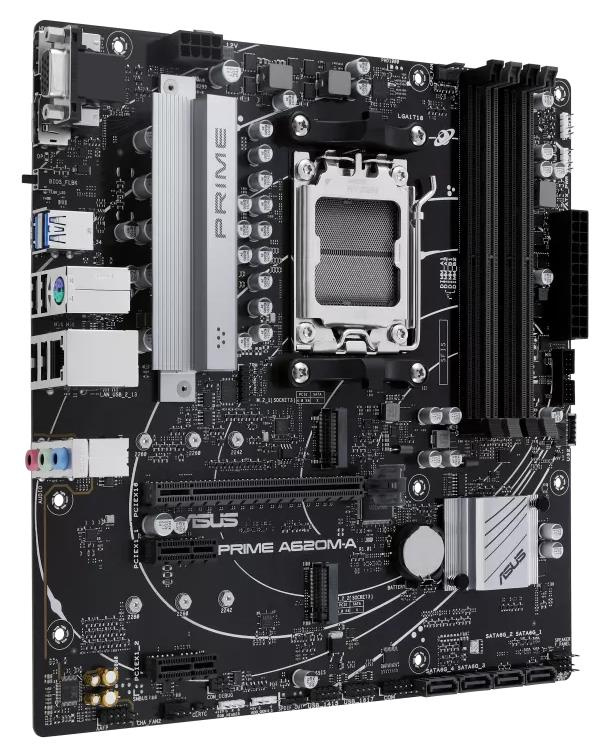

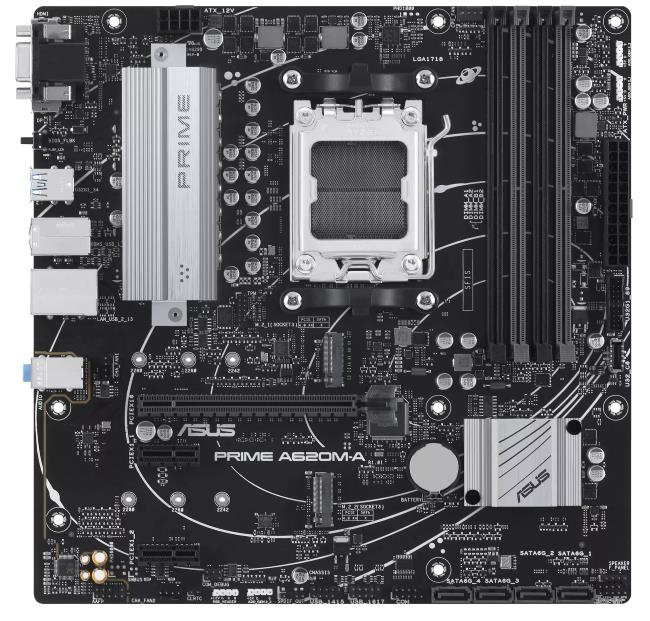

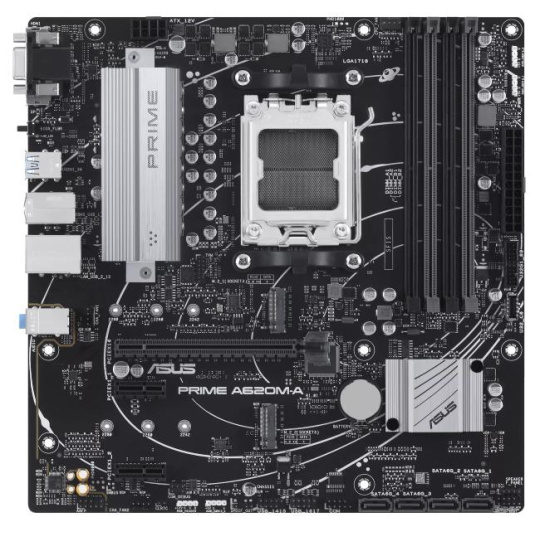

ASUS MB PRIME A620M-A
ASUS PRIME A620M-A is equipped with outstanding features, including 6-layer PCB design, DDR5 6400+(OC), PCIe 4.0 support, dual M.2 slots, USB 3.2 Gen 1 ports, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, DisplayPort /HDMI™/VGA, Addressable Gen 2 headers, Aura RGB header, Aura Sync, Q-LED Core, ASUS OptiMem II, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancellation, Armoury Crate, ASUS 5X PROTECTION III and SafeSlot Core, which will bring users maximizing performance, stability and compatibility for the very best DIY PC experiences.
CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list.
Chipset
AMD A620 Chipset
Memory
4 x DIMM slots, Max. 128GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort** 1 x VGA port 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD A620 Chipset* 2 x PCIe 3.0 x1 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD A620 Chipset 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Ethernet
1 x Realtek 1Gb Ethernet
USB
Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

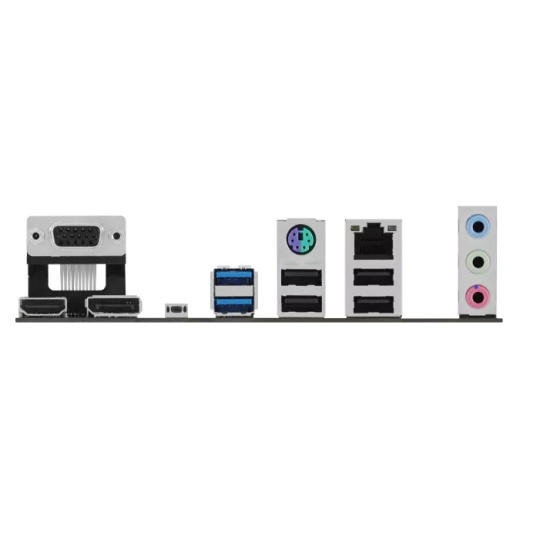

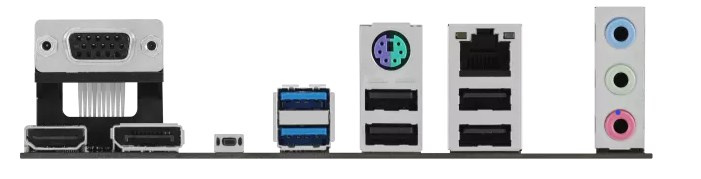

Back Panel I/O Ports
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED Aura Sync - Aura RGB header - Addressable Gen 2 headers
Software Features
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS, Manageability, Operating System
BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operating System Windows® 11, Windows® 10 64-bit
Accessories
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x Screw package for M.2 SSD Documentation 1 x User guide
Form Factor
micro-ATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
ParametryPorovnání
Technologie paměti RAM
DDR5
Socket (patice)
Socket AM5 (LGA 1718)
Chipset
AMD A620
PCI Express x16
1
Podpora RAID
1
Podpora RAID
10
COM port
Ano
LPT port
Ne
Formát základní desky
micro ATX
3.5mm Jack
Ano
Bezdrátové připojení
bez
Pro procesory
AMD
Počet paměťových slotů
4
DisplayPort
1
TPM
Ano
USB 2
8
USB 3
4
M.2 slot
2
SATA 3
4
VGA
1
HDMI
1
Led Header
Ne
PCI Express x1
2
USB C
1
LAN
1Gbit/s
